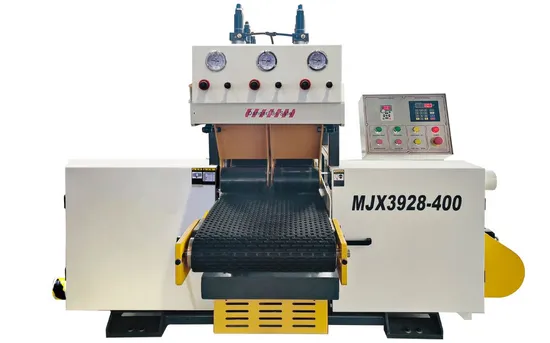

Heavy Duty Woodworking Log Timber Horizontal Wood Cutting Bandsaw

Product Description

Product Function

Horizontal bandsaw

Bearing: JAPAN NTN
Electrical components:CHINT
Table:Marble conveyor, flat surface
Wheel:High hardness cast iron wheel, processed through six steps
Tension system:The fully automatic tensioning function makes replacing saw blades more convenient and quick, and one person can complete it quickly. It also has a pressure-maintaining function, which can automatically increase the pressure when the saw blade heats up during sawing, ensuring that the saw blade is in a stable position and is not prone to breaking or sawing. It ensures that the sawed board will not become waste due to large sawing errors, thereby improving production efficiency, extending the life of the saw blade, reducing waste, and thus reducing production costs.

Specification

Model	MJB3928*400	MJB3928*500	MJB3928*650
Max workpiece size	400*200mm	500*200mm	650*200mm
Conveyor width	380mm	485mm	625mm
Wheel diameter	600mm	700mm	700mm
Feeding speed	0-14m/min	0-14m/min	0-14m/min
Main motor	15kw	18.5kw	18.5kw
Hydraulic pressure	60kg/cm2	60kg/cm2	60kg/cm2
Dimension	2400*2100*1700 mm	2400*2100*1800 mm	2400*2300*1800 mm
Net weight	1700kg	1800kg	1900kg

Detail Photos

Warrenty and After Service

1.One year guarantee from the delivery date of this machine under the normal operation of one shift per day
2.We will be responsible for the maintenance of damaged parts which is under normalsituation during warranty period, and all the round -trip courier transportation cost of damaged/repaired replacement parts in warranty period should be bornd by the buyer.Wearing parts are not included.
3.24 Hour technicial support by email or calling
User-friendly Englishi manual for machine using and maintaining.

---
