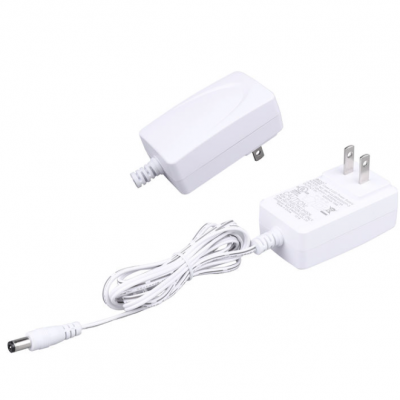

15W 5VDC 3000mA AC DC Adapter UL/CUL IP20 LED Power Supply household appliances

Product Details

Product Description

Product Description
Model NumberBrand NameoriginSmall Orders

RKP-UL0503000DP-3-#9658

Anenerge Electronic

China

Accepted

Key Specifications/ Special Features:
15W 5VDC 3000mA AC DC Adapter UL/CUL IP20 LED Power Supply household appliances
Model No.: RKP-UL0503000DP-3
Key Specifications: Input voltage: 100-240VAC
Input frequency: 50/60Hz
Input current: 0.5A
Efficiency: more than 80%
Ouput voltage: 5Vdc
Output current: 3000mA
Ouptut power: 15W
Output with SPT-1W 2x20AWG power cord
No load power consumptions: less than 0.1W at 25℃, no heat
Operating temperature: -30 to 60℃
Storage temperature: -40 to 80℃
Humidity range: 35 to 80% RH
Constant voltage precision: ±5%
MTBF: ≥60000 hours at 25 ℃
With 2-4 hours full load burn-in test and 100% hi-pot test
Dimansions: 69x39x47mm
Weight: 0.092kg
Type: wall mounted
Special Features: Universal AC input/full range
Certificates: UL/CUL
Efficiency standard: VI, DOE, NRCan, ERP, CEC, CoC V5 Tier2
Protections: SCP, OVP, OCP and OTP
Primary to secondary with safety isolated
High reliability and light weight
Low working temperatures
Low noise, energy saving and eco-friendly
Fire-proof plastic case and cooling by free air convection
Compact size and low cost
Low ripple design
3 years real long life span(working time: 2-5 years)
Custom: OEM/ODM orders are accepted
Applications:LED lights
Indoor household appliances
Input voltage: 100-240VAC
Input frequency: 50/60Hz
Input current: 0.5A
Efficiency: more than 80%
Ouput voltage: 5Vdc
Output current: 3000mA
Ouptut power: 15W
Output with SPT-1W 2x20AWG power cord
Dimansions: 69x39x47mm
Weight: 0.092kg
Type: wall mounted
