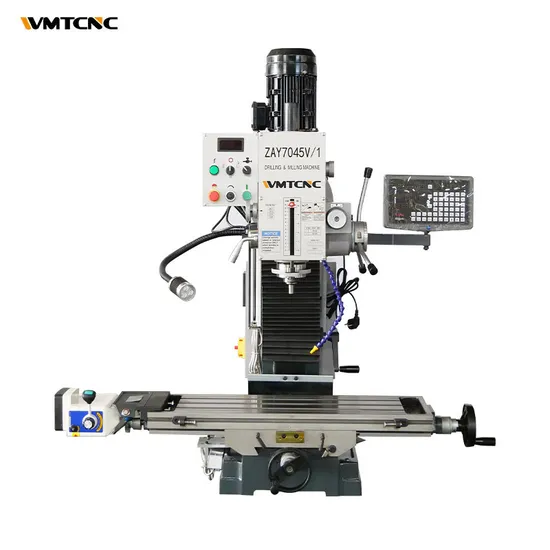

WMTCNC micro drilling and milling machine ZAY7045V/1 metal drill and milling machine

Product Description

Product Description
WMTCNC micro drilling and milling machine ZAY7045V/1 metal drill and milling machine main features:
1. Variable speed.
2. Milling , drilling , tapping , boring and reaming.
3. Head swivels ±45° vertically.
4. Micro feed precision.
5. Adjustable gibs on table precision.
6. Strong rigidity, powerful cutting and precise positioning.

Specification	ZAY7032V/1 ZAY7040V/1 ZAY7045V/1
Max. drilling capacity	32mm/40mm/45mm
Max. tapping capacity	20mm
Max. face mill capacity	63mm/80mm/80mm
Max. end mill capacity	20mm/32mm/32mm
Max. distance from spindle nose to table	450mm
Min. distance from spindle axis to column	260mm
Spindle travel	130mm
Spindle taper	MT3 MT4 or R8
Range of spindle speed(2 steps)	100-530, 530-2800rpm
Auto-feeding steps of spindle	3
Auto-feeding value of spindle	0.06-0.30mm/r
Swivel angle of headstock	±45°
Table size	800×240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Motor power(D.C)	1.5kw(2HP)
N.W/G.W	325/375kgs
Packing size(LxWxH)	770×880×1160mm

Detailed Images

Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
