US$500.00-50,000.00
|
1 set
(MOQ)
|
Basic Info.
Feature
Automatic Weighing
Filling Valve Head
Multi-Head
Application Place
Factory
Applicable Thickness
Middle Thickness Material
After-Sales Service
Technical Engineer Support
Applicable Material
Cotton and Fiber
Weighing Nozzle Size
19mm, 25mm, 38mm
Filling Type
Whole Piece Filling or Grid Filling
Daily Workload
5000-10000 Times
Single Weighing Range
1-150g
Dimension
1800*1200*1900mm
Installation Size
3000*2500mm
Transport Package
Wooden Box
Specification
dimension: 1800*1200*1900mm
Production Capacity
100 Sets/Month
Product Description

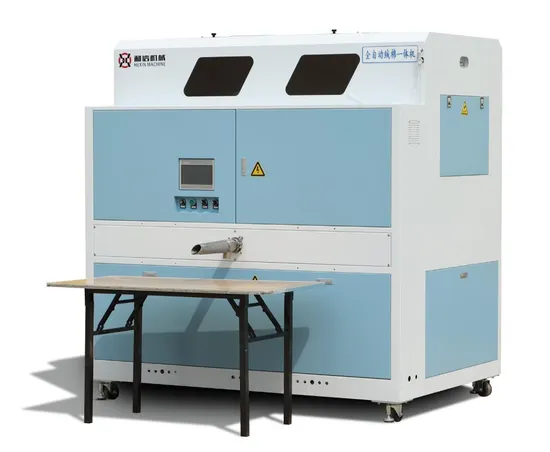

One Head Four Scales Automatic Down Filling Machine(cotton also can be also filled)
Product Parameters
| Model | RM1-4
|
| Single Error | Within 0.3g |
| Filling nozzle size | Weighing nozzle 19mm, 25mm, 38mm Flow nozzle 25mm |
| Daily workload | 5000-10000 times |
| Filling type | Whole piece filling or grid filling |
| Single weighing range | 1-150g |
| Filling material | Silk cotton, ball cotton, down, wool silk |
| Dimension(mm) | 1800*1200*1900 |
| Installation Size(mm) | 3000*2500 |
| Cycle number of single head | 4 |
| Display Accuracy | 0.1g |
| Machine weight | 450kg |
| Power | 380V/4KW |
| Filling port | 1weighing nozzle+2 flow nozzle |
Electrical parts
| Name | Brand and Origin |
| PLC | Delta/Xinje |
| Sensor | HBM(Germany) |
| Regulated power supply | MW(Taiwan) |
| Controller | Delixi |
| Pneumatic parts | AirTAC |
| Pressure Regulating Valve | Japan SMC/AirTAC |
| Touch Screen | MCGS |
Our Advantages
Company Profile Our company is a national high-tech enterprise and has its own invention patents and multiple software works. The company has its own registered trademark and export authority, and has passed the international European Union CE certification.
Enterprise Vision: Technology Hexin Serving the World
Enterprise Spirit: Innovation for Practicality
Business philosophy: High efficiency and energy saving, create more value for customers.
FAQ FAQ Q: Are you a trading company or manufacturer ? A1: Tangshan Hexin Garment Machinery Co., Ltd. is a professional manufacturer with many years'experience.Q: What's your payment terms?
A2: We accept T/T, L/C
Q: What's the delivery time?
A3: 3~10 days. Q: Which payment period is accepted? A4:30% advance payment paid by T/T before fabrication and 70% balance payment paid by LC or TT before delivery.
>>
