Basic Info.
Medium Temperature
Cold Water
Counter Instructions
Digital
Application
Civil, Industrial
Principle
Volumetric Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Type
Flange,Woltmann Type
Feature
Rotary/Vane Wheel
Transport Package
Carton or as Customer′s Request.
Production Capacity
10000PCS/Month
Product Description

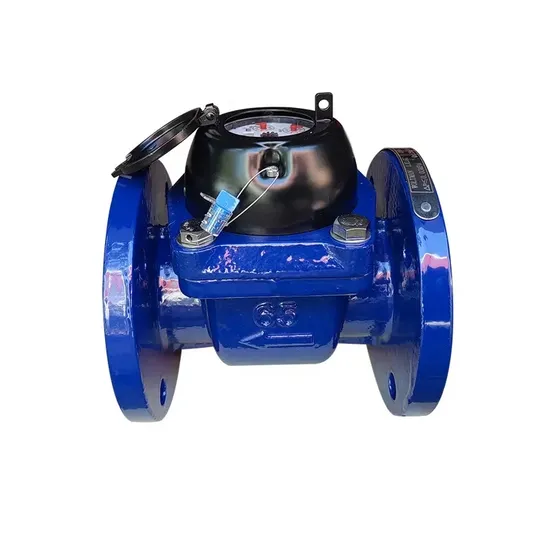

Horizontal 65mm cast iron cold woltmann water meter for agriculture irrigation
Product Description Specification 1. Type name: Woltmann Type Water Meter
2. Size: DN50-DN300
3. Standard :ISO 4064 Class B
4. Material: Cast iron
5. PN : 1.0/1.6 Mpa (10/16bar)
6. Horizontal installation Working Conditions Water temperature: 0.1ºC~50ºC ( 0.1ºC~90ºC for hot water meter)
Water pressure: ≤1Mpa (1.6MPa for special requirement) Error curve From qt inclusive up to and including qs is ±2%;
From qmin inclusive up to but excluding qt is ±5%.
Tecnical Details
| Meter Size DN (mm) | Qs Overload Flow | Qp Nominal Flow | Qt Transitional Flow | Qmin Min Flow | Min Reading | Max Reading |
| m³/h | m³ |
| 50 | 30 | 15 | 3.0 | 0.45 | 0.001 | 999999 |
| 65 | 50 | 25 | 5.0 | 0.75 | 0.001 | 999999 |
| 80 | 80 | 40 | 8.0 | 1.2 | 0.001 | 999999 |
| 100 | 120 | 60 | 12 | 1.8 | 0.001 | 999999 |
| 125 | 200 | 100 | 20 | 3.0 | 0.001 | 999999 |
| 150 | 300 | 150 | 30 | 4.5 | 0.01 | 9999999 |
| 200 | 500 | 250 | 50 | 7.5 | 0.01 | 9999999 |
| 250 | 800 | 400 | 80 | 12 | 0.01 | 9999999 |
| 300 | 1200 | 600 | 120 | 18 | 0.01 | 9999999 |
| 350 | 1600 | 800 | 160 | 24 | 0.1 | 99999999 |
| 400 | 2000 | 1000 | 200 | 30 | 0.1 | 99999999 |
| 500 | 3000 | 1500 | 300 | 45 | 0.1 | 99999999 |
Detailed Photos Installation Installation requirements: Meter should be installed in horizontal position with the register face upwards Pipe line must be flushed before installation The meter should be constantly full of water during operation
Production Process
Customer Photos
Packaging & Shipping
Company Profile
TIANYI SUNS PIPE&FITTINGS CO.,LTD. is one of the main suppliers in China manufacturing and supplying of advanced pipe systems and solutions, connecting people with water and energy. We provide a broad range of pipeline system products for infrastructure, building ,irrigation ,industry, gas and energy applications. We are completely committed to international quality standards and are certified to ISO 9001 (Quality Management) and relevant products certifcates. Our products are manufactured based on standards ISO2531, EN545, EN598, EN14525,EN12842,BS4504, ISO7005, AWWA C219, DIN3352, BS5163,BS5153,AWWA C509, EN124 and so on . Our main pipeline system product are as below:
ductile iron pipe, ductile iron pipe fitting, manhole cover, gate valve, butterfly valve, check valve, Y strainer, flange, dismantling joint, flange adaptor, flexible coupling, saddle, gibault joint and repair clamp. we can not only serve for the distributors, but also for the big water projects from the overseas, our products have been widely recognized in the international markets and have already obtained many honors and reputations.
As a responsible manufacturer and supplier of pipeline system products, we are with proved with long-term performance and reliability. We are passionate about creating sustainable, innovative solutions for our customers and communities and we thrive in the international environment to provide you our best services, please be ensured that our constant motivation is to always go beyond your expectations by continually offering you the highest quality level.
FAQ Q. Do you accept OEM service?
A: Yes, we do.
Q. Can I get free samples?
A: Yes, And you only need to bear the delivery costs, if the samples are not too big.
Q. Can I have my own Logo on the product?
A: Yes, we're the professional manufacturer, so the OEM service is available.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
>>
