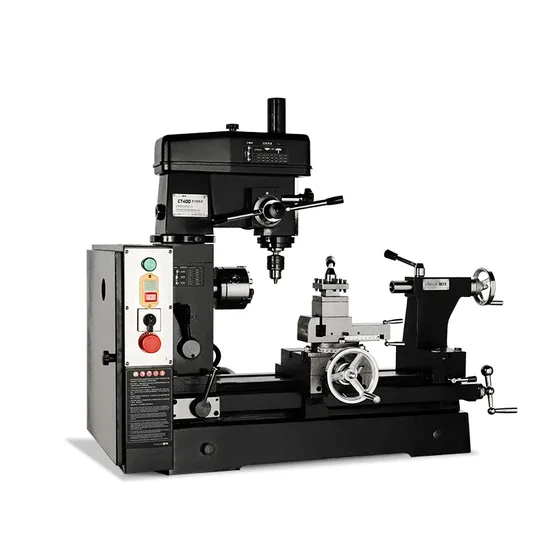

Combined Mini Metal Lathe Machine for Household Use CT400

US$1,479.00
1-4 Sets
US$1,429.00
5-9 Sets
US$1,379.00
10+ Sets

Basic Info.

Model NO.
CT400
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
970*580*965mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
5000

Product Description

Max. swing over bed 420mm
Distance between centers 400mm
Large carriage travel 380mm
Middle carriage travel 120mm
Spindle bore 20mm
Spindle taper MT3
Taper of tail-stock MT3
Max. travel of tail-stock sleeve 70mm
Spindle speed range/Grade 160~1360RPM
Metric thread/Grade 0.2~3mm /18
Inch thread/Grade 8~120T.P.I /32
Automatic feed 0.050~0.175mm/r /8
Max.Drilling capacity 15mm
Max.vertical milling capacity 20mm
Max.milling capacity 63mm
Spindle taper MT3
Distance from spindle end to table surface 85mm
Spindle speed range/Grade 117~1300rRPM /14
Drilling and milling head box vertical lifting stroke 80mm
Table size 200x150mm
Motor power 0.75kw/220v
Overall dimensions 970×580×965mm
N.W./G.W. 180KG/220KG
