Auto Wood Finger Joint Shaper Press Production Line

Product Description

Product Description

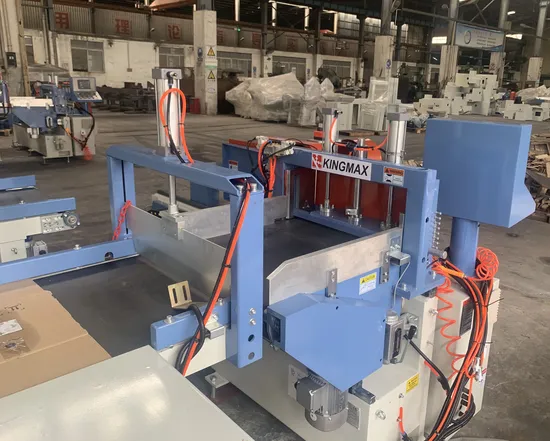

The Min. Short material can be 80mm. Finger joint shaper line using servo motor drive, the processing efficiency is 50% higher than normal hydraulic transmission system. This line equips 2 sets chain conveyor for faster feeding speed, reach 30m/min. Finger joint assembler can be processed in sections, with 2-3 strips at a time. Detailed Photos
Product Parameters

KSC756A Stock strap conveyor (Infeed)
Worktable length	1150mm
Worktable width	600mm
Motor power	0.37kw
Overall size	1180x1330x920mm
Air pressure	0.5-0.8Mpa
KFJS3515B Auto finger joint shaper (Servo motor drive)
Max. Working width	660mm
Max. Working length	850mm
Max. Working thickness	150mm
Finger joint teeth length	12mm
Shaper spindle diameter	Ø70mm
Shaper blade diameter	Ø160mm
Max. Saw blade size	Ø255mm
Shaper spindle rotate speed	6000rpm
Scoring saw blade spindle speed	5600rpm
Trimming saw blade spindle speed	5000rpm
Air pressure	0.5-0.8Mpa
Cutter motor power	11kw
Saw motor power	5.5kw
Feeding motor power	0.37kw
Servo motor power	1kw
Overall size	2380*1700*1400mm
Net weight	2000kgs
KSC756B Transition strap conveyor
Worktable length	1150mm
Worktable width	600mm
Motor power	0.37kw
Overall size	1180*725*920mm
Air pressure	0.5-0.8Mpa
KFJS3515TB Auto finger joint shaper with glue applicator (Servo motor drive)
Max. Working width	760mm
Max. Working length	850mm
Max. Working thickness	150mm
Finger joint teeth length	12mm
Shaper spindle diameter	Ø70mm
Shaper blade diameter	Ø160mm
Max. Saw blade size	Ø255mm
Shaper spindle rotate speed	6000rpm
Scoring saw blade spindle speed	5600rpm
Trimming saw blade spindle speed	5000rpm
Air pressure	0.5-0.8Mpa
Cutter motor power	11kw
Saw motor power	5.5kw
Feeding motor power	0.37kw
Servo motor power	1kw
Overall size	2580*1700*1400mm
Net weight	2200kgs
KRC746A Output roller conveyor
Worktable length	1900mm
Worktable width	610mm
Motor power	2.25kw
Overall size	1900*1100*920mm
KCC762 Chain conveyor
Motor power	2.95kw
Overall size	5900x700x1000mm
KFJA1560A Finger joint assembler
Processing length	2000-6000mm
Processing width	30-150mm
Processing thickness	15-80mm
Main saw blade size	Ø355mm
Main saw spindle speed	3700rpm
Air pressure	0.5-0.8Mpa
Saw blade spindle motor	3kw
Oil pump motor	5.5kw
Feeding motor	1.5kw
Total power	10kw
Max. Jointing force	7800kgs
Overall size	8000*1300*1420mm
Remark
Air volume of dust collector	9000m3/h
Fixing dimensions	20000x6000mm

Packaging & Shipping
FAQ
1) Q: What's the MOQ?
A: One set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can.
3) Q: What's the payment terms?
A: T/T 30% as deposit and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. KINGMARKS is our brand.
5) Q: How long is the warranty period?
A: One year except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.

---
