Welcome to visit

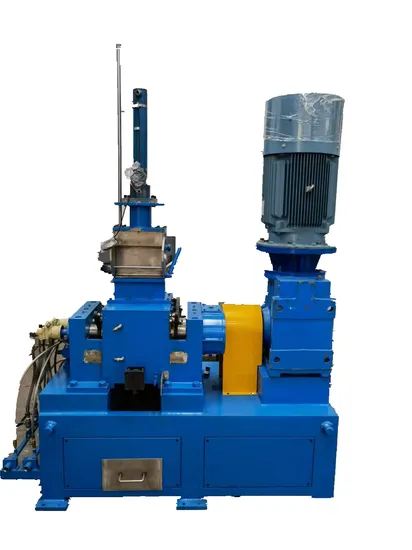

Lh-1.5y Rubber Intermeshing Mixer for Rubber Research Center Use

US$120,000.00
1-49 Sets
US$115,000.00
50+ Sets

Basic Info.

Model NO.
LH-1.5Y
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Total Volum
1.5L
Weight
1.2 T
Color
Green
Rotating Speed
85/100r/Min
Drum Pressure
0.6MPa
Rotor
Intermesh
Power
37/55kw
Usage
Mixing Rubber
Rotor Style
Tangential and Intermesh
Transport Package
Film Covering
Specification
SGS
Trademark
LANHANG
Origin
China
HS Code
8477800000
Production Capacity
50 Sets/Year

Product Description

Company Introduction
Founded in 1992, Zhangjiagang Lanhang Machinery Co., Ltd. is a private enterprise integrating scientific research, production, marketing and service of plastic machinery into one complete whole. After 30 years of hard work and continued efforts to improve product quality, we passed ISO9001 certification for our products.
Our "Lanhang" brand of planetary roll extruders, straining extruders, powerful horsepower dense mixers, mixing rolls, and high-speed mixers are the backbone of our company.
Product Description

1) Application& Features
This machine is mainly used in the mixing of the plastic. The banbry mixer adopts the special structure of left, middle and right which is easy to maintenance.
2) Machine list

No.

Item

Qty

1

Body

1 set

2

Hydraulic hammer and cylinder

1 set

3

Material feeding system

1 set

4

Discharging system

1 set

5

Driving system

1 set

6

Electrical controlling system

1 set

7

Hydraulic and lubrication system

1 set

8

Equipped pipe

1 set


Banbury mixer with tangential rotors
/
ITEM/MODEL
LX-1.5L LX-3L LX-10L LX-35L LX-55L LX-75L LX-100L LX-160L LX-190L LX-270L LX-410L

ROTOR TYPE
TANGENTIAL ROTORS

RAM DRIVER
HYDRAULIC or PNEUMATIC
L
Total Volume
1.5L 3L 10L 35L 55L 75L 100L 120L 160L 270L 410L

FILL FACTOR
75%

MainRotor Speed(r/min)
6~6
8~80
10~100
6~6
8~80
10~100
4~40
5~50
6~60

Rotor speed ratio
1:1.17

Power(kw)
22
37
55
37
55
75
75 110 132 160 220 400 500 1250
1500
1250*2
Weight(T) 2,3 3 6 9 12.5 16 22 28 36 45 60

Internal mixer with intermesh rotors
/
ITEM/MODEL
LH-1.5Y LH-3Y LH-10Y LH-35Y LH-55Y LH-90Y LH-135Y LH-160Y LH-190Y LH-250Y LH-320Y LH-410Y

ROTOR TYPE
INTERMESHING ROTORS

RAM DRIVER
HYDRAULIC or PNEUMATIC
L
Total Volume
1.5L 3L 10L 35L 55L 75L 100L 120L 160L 270L 410L

FILL FACTOR
65%

MainRotor Speed(r/min)
6~60
8~80
10~100
6~60
8~80
10~100
4~40
5~50
6~60

Rotor speed ratio
1:1

Power(kw)
37
55
75
55
75
90
110 160 250 280
350
450
500
630
750
630
750
800
750
1000
1250
1250
1500
1250
1500
1800
2500
Weight(T) 2.8 3.5 6.6 9.5 12.9 16.5 22.5 28.5 37 46 61 79
