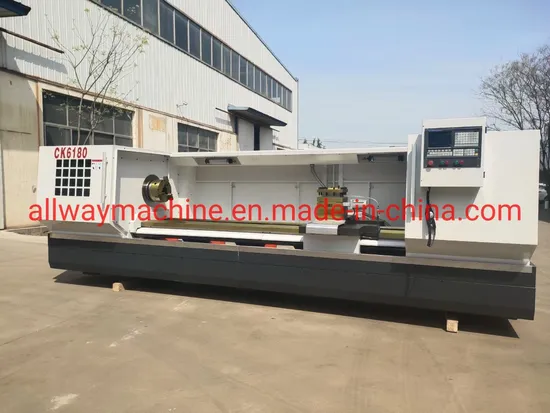

Big Spindle Bore CNC Lathe Machine

US$14,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

CK6180

Type

Horizontal Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Horizontal Guide Rail

Tool Holder

Single-tool Holder CNC Lathe

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Setting Mode

Floor-type

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

Spindle Bore

120mm/140mm

Transport Package

Pallet

Specification

800x1000mm, 800x1500mm, 800X2000, 630X3000

Trademark

Allway

Origin

China

HS Code

84581100

Production Capacity

1000PCS/Year

Product Description

CK6180 CNC lathe can perform various kinds of cutting ,such as ,internal hole ,cylindrical,cone face,arc face and thread etc;it is especially suitable for rough and finish processing of shafts and discs in small ,medium batch,with features of high automation,easy programming and high precision,etc.
CK6180 CNC lathe can perform various kinds of cutting ,such as ,internal hole ,cylindrical,cone face,arc face and thread etc;it is especially suitable for rough and finish processing of shafts and discs in small ,medium batch,with features of high automation,easy programming and high precision,etc.

SPECIFICATION	TECHNICAL DATA
	CK6163	CK6171	CK6180
Max. swing diameter over bed	630mm	710mm	800mm
Max. swing diameter over cross slide	390mm	460mm	550mm

width of bed	410mm
Max. length of workpiece	1000mm 1500mm 2000mm,3000mm,4000mm
spindle nose	D11
spindle bore diameter	120mm
taper of spindle bore	1:20
range of spindle speed	12-1000r/min 18kinds
Min. set unit of longitudinal	0.01mm
Min. set unit of transverse	0.005mm
Range of threads	0.15-24mm
No. of toolpost positions	6
tailstock center taper	Taper Morse No.5
travel of the tailstock sleeve	250mm
tailstock sleeve diameter	100mm
Main motor power	7.5kW
Cool pump power	0.125kW
