PVC Glass Fiber Plastic Reinforced Pipe Extrusion Making Machine
US$24,000.00
1 Set
(MOQ)
Basic Info.
Model NO.
sj120/35
Screw No.
Single-screw
Automation
Automatic
Computerized
as Request
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
Machine Color
as Request
Inverter Brand
ABB or FUJI
Contactor
Schneider
Components
Siemens
Tempearture Controller
Omron
Raw Material
PPR Granule+Glass Fiber
Oversea Service
Available
Operator
3-4 Per Line
Screw Material
38crmoaia
Cooling Method
Spraying Water Tank
Transport Package
in 40′ Gp
Specification
ISO9001 CE
Trademark
Suke
Origin
Qingdao, China
HS Code
847780000
Production Capacity
50 Sets Per Year
Product Description

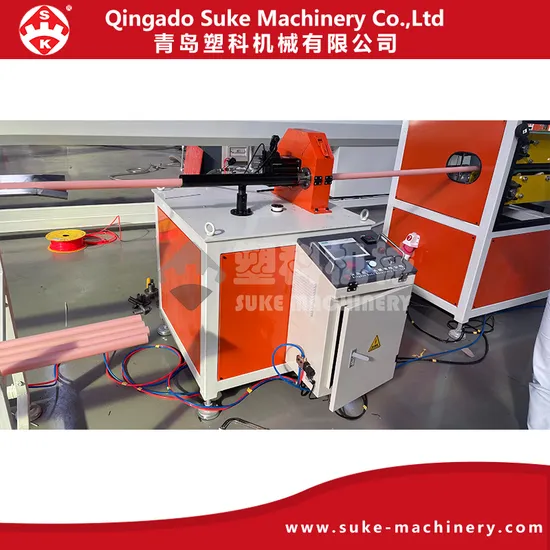

PPR Glass Fiber Reinforced Pipe Production Line. Machine Introduction: This extrusion line adopts high efficient barrier type screw, specially designed for PP-R material and glass fiber(GF) material, high quality high speed extrusion, high shear stress and low temperature to ensure that raw materials can be extruded with high performance. The measurement on the feeder with the drying system can guarantee theuniformed extrusion. Equipment List: 1. Vacuum feeding machine 2. Drying hoppers 3. Single screw extruder 4. Co-extruder for marking lines 5. Vacuum calibrating tank 6. Water spraying cooling tank 7. Ink jet printer 8. Haul off machine 9. Non-scraped cutting machine 10. Pipe stacker 11. Spare parts Machine Features: 1. Split spiral extrusion die head Can maintain low melt pressure and low plasticization temperature. A wide range of polyolefin materials can be processed by this die head, too. 2. Vacuum calibrating tank and water spraying cooling tank Adopts advanced water circulation, high pressure cooling system, installed with vacuum degree adjusting device and automatic water temperature and water level controlling system. All the pipelines are made of stainless steel to avoid rustiness. 3. Haul off machine Caterpillars are made of abrasion-resistant material to ensure stable traction at high speed as well as a long service life. 4. The automatic non-scraped cutting machine Is able to make perfect, non scraped cuts on the finished pipes. The cutting motion of the saw is controlled by a synchronous belts drive which operates very quietly
