Factory Supply! 5 Axis CNC Router Milling Machine for Polystyrene Wood MDF Mould Making

Product Description

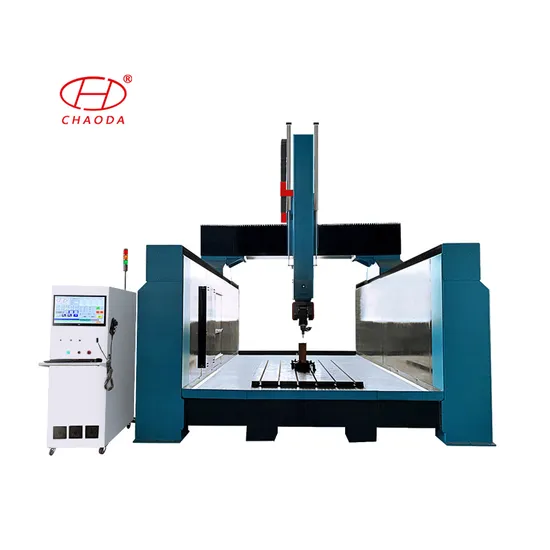

Factory supply ! 5 Axis CNC Router Milling Machine for Polystyrene Wood MDF Mould Making
All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Heavy duty steel wall structure, keep machine with very good stability. Adopt disk/linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work. High z axis design, suitable for large scale three dimensional surfaces machining. With a big rotary device, can process different kinds of 3d sculptures,statues,columns.

Model No.	JC2030-5AXIS
X,Y,Z,A,C working size	2000*3000*1000mm* ±120°* ±245°
Whole structure	heavy duty steel wall structure
Table surface	T-slot with clamps (option: vacuum table)
Spindle	10KW ATC spindle, cooled by liquid
Tool magazine	Disk type automatic tool changer, with 8pcs tool magazine
Driving system	Japan YASKAWA servo motor and driver
Inverter	Delta
Operating system	5 axis Syntec (option:OSAI)
Operation language	G code
Working voltage	AC380V, 3-phase, 50Hz
Running environment	Temperature: 0ºC-45ºC; Relative humidity:30%-75%

It can process many materials,like eps foam,Polystyrene,woods, MDF, Composite boards, Alucobond,PVC, Rigid plastics,polyester,
fiberglass, Acrylic,Organic glass, Aluminum,etc.
1. Sample testing before shipment2. Provide 2 days free training for each machine3. 12 months warranty for each machine4. Friendly English version manual and operation videos for studying5. Free technical support by phone,email,chatting or remote6. Engineers available to service machinery overseas

---
