Borui Ck36L Factory Price Slant Type Turning Center CNC Lathe Machine

Product Description

BORUI CK36L Factory Price Slant Type Turning Center CNC Lathe Machine
Product Description
This machine is widely used in processing and manufacturing the electrical appliance, instrumentation industry, automobile, motorcycle, fastener bearings, photographic and film machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise and complex components. It is the ideal high efficient equipment in the hardware machining industry.
Product main technical Specifications:

Model	CK36L
Max. swing over bed	φ360mm
Max. swing over cross slide	φ200mm
Distance between centers	500/750mm
Spindle nose	A2-6
Spindle bore	φ56mm
Chuck diameter	160mm
Max. Spindle speed	4000 rpm
X axis travel	210mm
Z axis travel	500/750mm
X/Z axis Rapid traverse	15/15m/min
Hydraulic turret	8
Max. section of tool	20*20mm
Stroke of tailstock sleeve	80mm
Diameter/ Hole of tailstock sleeve	φ60mm/MT4
Main motor power	5.5KW
Coolant pump power	120W
Overall dimensions L*W*H	2650 x1550x1750mm
Packing size L*W*H	2850x1750x2150mm
N.W/G.W	2600KG/2900KG

CNC Controller system:
GSK; FANUC; Siemens; KND

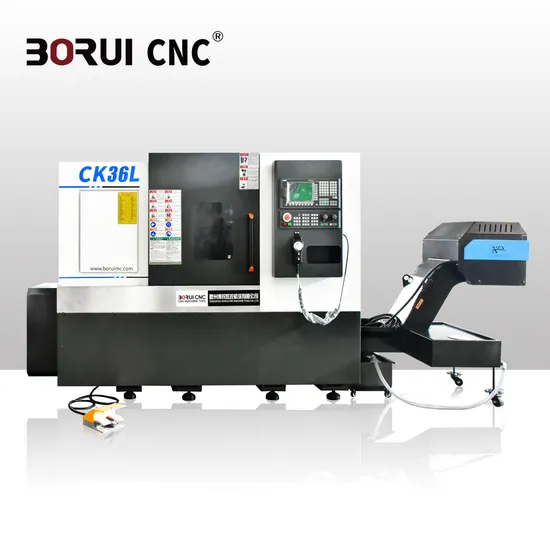

Details Display

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
