Product Description

Product Description

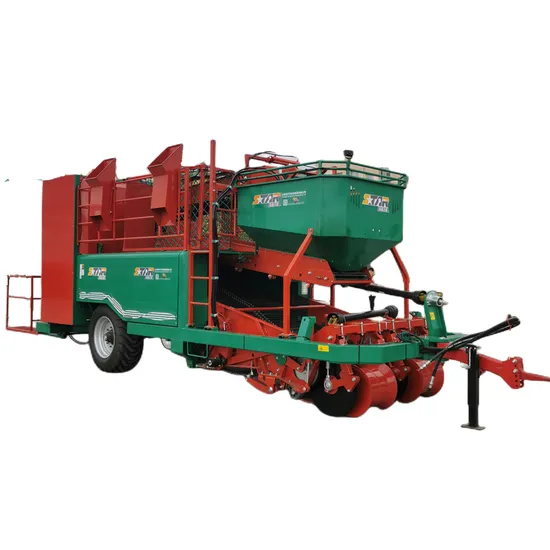

4 UL- 170D traction type of potato combine harvester is a machine that can realize the potato disposable digging, separation, potato - soil - haulm separation, artificial pick up cleaning, centralized collection, transportation, pack tons bag, It can harvest two ridges, the efficiency reached 0.33 hm2 / h above, and that less manpower, less loss, low rate of broken skin, less impurity.

Product Parameters

Structural style	Trailed
Overall dimension (length×width×height)	8750×3400×3720mm
Machine weight	5800kg
Tractor engine power	92-118kW
Working ridges	2
Working width	1700mm
Adapt to ridge width	900mm
Digging depth	150~300mm
Productivity of pure working time	≥0.33hm2/h
digging shovel type	Combined tip shovel
stem-removing device type	Chain
cleaning and separating device type	Spiral rubber roller
Potato export mode	tons bag
PTO The input speed(MAX)	540r/min
Cache box capacity	1000L

Advantages

1. Excavating shovel through shovel structure can achieve 2+2 mode harvest.
2. electro-hydraulic vibration control system, the operator in the cockpit through the knob to complete the adjustment of the vibration frequency of a screen.
3. improve the net conveying, good soil leakage effect, ensure the material clean.
4. traction (ground wheel) steering function, greatly shorten the turning radius of the machine.
5. transplanting chain seedlings removal device, on the basis of not damaging potatoes to reduce seedlings, grass and other sundries.
6. multi-stage spiral rubber roller soil cleaning and cleaning device, very good to remove the soil and debris of potato noodles, and can realize the reverse function through the handle.
7. The upper conveying device has adjustable speed and adjustable height of the blanking arm. It can adjust the speed of the conveyor belt according to the number of pickers, and adjust the height of the blanking arm according to the state of the material in the cache box to reduce potato knock.
8. The cache bin can realize the machine without stopping to harvest and load tons of bags.
9. The lower conveying device can be controlled to start and stop to complete the function of loading tons of bags. The loading and unloading personnel can complete the material conveying in the cache bin to tons of bags by manipulating the handle, and the lifting/dropping, forward/backward tilting functions of tons of bags, and the loading and unloading speed of tons of bags is fast.
10. Manual picking up and sorting device can better ensure the clean rate of potato in tons of packets.
11. Intelligent electro-hydraulic control system, all actions of the potato combined harvester are completed by the manipulator and the ton bag handling personnel through the control handle.
12. Video monitoring system can complete the video monitoring of the key process of operation, such as the loading and unloading process of tons of bags, the conveying process of primary mesh screen, whether the cache bin is full, the operation process of cleaning roller, etc.
13. the machine in addition to the first level of mesh screen other conveying devices are all driven by hydraulic, can ensure that the conveying mesh screen in the blocked situation to avoid the conveyor belt or other parts damage.

---
