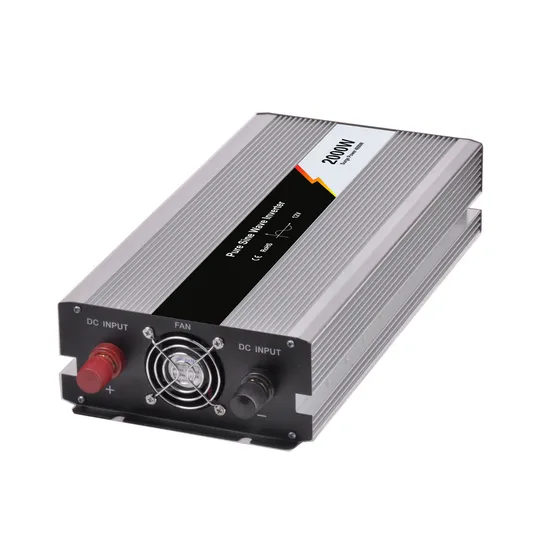

WHP-2000 OFF Grid Pure Sine Wave DC to AC Power Inverter High Quality 2000W 12V 24V 48V to 110V 220V High Efficiency Inverter Note:
1. We have enough capacity to produce your customized order.
2. Samples are available.
3. High quality and competitive price.
4. 1 year warranty, please rest assured to buy.
| Model | P-1500W-12V | P-1500W-24V | P-1500W-48V |
| Output Power | 1500W |
| Peak Power | 3000W |
| DC Input Voltage Range | DC12V(9.5V-15.5V) | DC24V(19V-31V) | DC48V(38V-62V) |
| AC Output Voltage (Single Choice) | 100V/110V/120V/220V/230V/240V |
| Unload Current | ≤0.6A | ≤0.3A | ≤0.2A |
| Output Frequency | (50Hz±2Hz) or (60Hz±2Hz) |
| Output Waveform | Pure sine wave |
| Display | LED or LCD display |
| USB Output Votlage / Current | 5V 2A (Support QC3.0 fast charge up to 18W) |
| Max. Output Efficiency | 90% | 92% | 95% |
| Low Voltage Protection | "Alarm ""Bi"" with 2s interval +red and green lights flashing alternately restart automatically when voltage recover" |
| Over Voltage Protection | " Alarm ""BiBi"" with 1s interval +red and green lights flashing alternately restart automatically when voltage recover" |
| Over Load Protection | "Alarm ""Bi"" continously +red light flashing / restart automatically when load power recover; If it is closed after twice recover, it need restart manually." |
| Over Temp Protection | " Alarm ""BiBiBi"" with 1s interval +red and green lights flashing alternately restart when temp recover" |
| Short Circuit Protection | yes |
| DC Reverse Connection Protection | Fuse burnt |
| Low Voltage Alarm Range | 10.5v±0.5v | 21v±0.5v | 42v±0.5v |
| Low Voltage Protection Range | 9.5v±0.5v | 19v±0.5v | 38v±0.5v |
| Low Voltage Recover Range | 12v±0.5v | 23v±0.5v | 46v±0.5v |
| Over Voltage Protection Range | 15.5v±0.5v | 31v±0.5v | 62v±0.5v |
| Over Voltage Recover Range | 14v±0.5v | 28v±0.5v | 56v±0.5v |
| Working Temperature | -10ºC~50ºC |
| Cooling Method | Fan cooling (Temperature control) |
| Unit Size | 335mm*180mm*76mm |
| N.W/G.W | 3.42kg/4kg |
