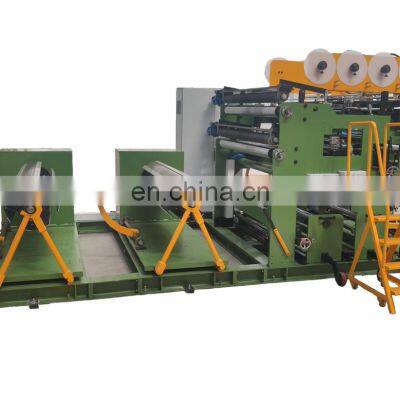

BRJ800-II Double Layer Foil Winding Machine

Product Description

Product Description
Product Description
This Low Voltage Foil Winding Machine for transformer is suitable for 1KV and more than 1KV level transformer windings. The machine canlap winding and duplex winding for two layers of copper or aluminum foil. The machine equipped with welding unit and two sets of shears.All the production parameters are set on the Human-Computer Interface and machine works in fully automatic.
If you are looking for a transformer foil winding machine or any other transformer machine, please do not hesitate to send us an inquiry!
Detailed Images

Parameter Technical	BRJ400-2	BRJ600-2	BRJ800-2	BRJ1000-2	BRJ1400-2
Foil width	400mm	600mm	800mm	1000mm	1400mm
Winding diameter	Φ130-600	Φ130-800	Φ130-800	Φ130-1000	Φ130-1000
Winding type	Round / Rectangle
Material thickness	Copper: 0.2-2.0mm, Aluminum: 0.3-3.0mm
Foil decoiler capacity	500KG	1000KG	1500KG	2000KG	2500KG
Winding power	11KW	11KW	11KW	15KW	22KW
Winding speed	0-30r/min	0-26r/min	0-24r/min	0-20r/min	0-18r/min
Welding type	TIG
Cutting type	Electrical roll cutting
Layer insulation width	≤450mm	≤650mm	≤850mm	≤1050mm	≤1450mm
Insulation diameter	φ76-400mm	φ76-400mm	φ76-400mm	φ76-400mm	φ76-400mm
Rectification	Photoelectric sensor automatic rectifying
Rectification precision	±0.5mm	±0.5mm	±0.5mm	±0.5mm	±0.5mm
Controlling	PLC automatic control
Recording	0--9999.9, Precision 0.1
