10-2000kVA Yuchai Weichai Shangchai Diesel Generator

Product Description

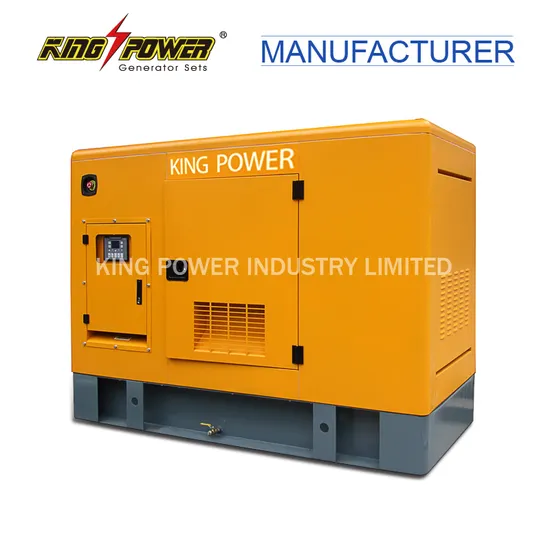

81KVA Silent diesel generator set
King Power, established in 1994, after more than 20 years' development, has turned into a top level in diesel and gas generator manufacturer in China. Till now, King Power has achieved more than 29 patents. It has been authorized as the high-tech enterprise with 100 million RMB registered fond and more than 80000 square meters factory area. King Powr provides solutions to gas generator, biogas generator, coal-bed gas generator, biomass generator, the CHP system, etc. And committed to become a pioneer in gas and diesel power industry.
Basic Info:

Genset model: King Power/KPG81P	Installation Method: Fixed
Fuel type: Diesel	Cooling Method: Water Cooling
Conditions of use: Land use	Usage: Common/standby units
Excitation Mode: AC Rotating Exciter	Excitation Mode: AC Rotating Exciter
Output Type: AC Three Phase	Stroke: Four Stroke
Trademark: King Power	Out-put Power(KW/KVA): 65/81
Origin: Shenzhen, China	Dimension(MM): 1770*700*1130
Sound Level(DB): 60-105	Gross weight(KGS): 950
Speed(RPM): 1500/1800	Alternator brand: Robot/Marathon/Leroy-somer
HS code: 8502120000	Advantage: Anti-Vibration, Fuel-saving, high Efficiency
Optional Parts: Parallel System, Fuel Tank, wheels, ATS
Standard Accessory: Exhaust Silencer, Flexible Pipe, Battery Cables, battery, air breaker
Environment: Work in Any Kinds of Harsh Climate
Warranty Period: 1 Year or 1000 Hours from the genset's delivery from the seller, subject to whichever comes first.

Package & Payment & Delivery Date
Package: PEE/ Ply-wood packing.
Payment term: 30% T/T as deposit, 70% balance shall be paid before delivery. Or 100% irrevocable L/C at sight.
Price term: FOB, CFR, CIF, EXW
Delivery time: 20-35 working days after getting the deposit.
Genset features
1. Engine and alternator shall be mounted on a same frame steel skid.
2. Built-in damper for anti-vibration.
3. World-famous diesel engine brand.
4. World-famous AC alternators brand.
5. Intelligent and reliable control module.
6. Full range protection function and alarm shutdown feature.
7. Supply of all the necessary spare parts.
8. High price performance ratio.
9. After-sale service centers located all over the world.
Alternator Feature
1. Brush-less, 4 poles, rotation magnet.
2. IP21-23) enclosure is standard for all industrial alternators.
3. The insulation system is Class H
4. Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of flange adapters and single bearing disc coupling.
6. Standard 2/3 pitch windings avoid excessive neutral currents
7. AVR auto voltage regulator, auto exciter, auto adjustment
Standard Accessory
Steel base frame, 3 meters smoke pipe, Exhaust silencer, Flanges, bellows, Battery and connecting wires, Operation manual and documents, load test report, water temperature sensor, oil-pressure sensor, air breakers, control panel, maintaining tools, etc.
Optional Accessory
Water-proof canopy, engine coolant and oil heater, Alternator space heater, heat exchanger, remote control system with RS232/485 communication interface, floating battery charger, fuel-water separator, daily or base fuel tank, ATS, VTS, paralleling system, synchronizer, moving trailer or wheels, sound-proof canopy, extra spare parts.
Silent Canopy performance
1. Steel Weatherproof Canopy
2. Built In Fuel Tank
3. Built In Control Panel
4. Built In Start Battery
5. Power Output Rapid Insert
6. Doors for Looking or maintaining
7. Air Louver for Intake & Exhaust
8. Exhaust Gas Silencer
9. Assembled smoke pipes
10. Filled with high quality silencer cotton
11. Strong sense of design
12. Easy for operating
ATS System
If the generator set will be used as a standby power, the auto transfer switch (ATS) is necessary and essential. Because ATS can automatically transfer load from Mains power to generator set. In normal, when the Main power fails or voltage drops below 80% of the normal voltage, ATS will auto start standby generator set after a preset time of 0-10 sec (adjustable according to the users). Once generator reaches at rated speed, the ATS will transfer the load to standby generator sets automatically.
Quality Warranty Period
One year or 1000hours from the genset's delivery from the seller, subject to whichever comes first. Customers can have get the warranty from both the engine or alternator suppliers and also from King Power during the warranty period. We promise to test every generator set before delivery.
After-sale service
King power provides free technical support and spare parts during the warranty period. We can also provide support to the customers, if the customers need us to help fix the installation or commission, only charging the necessary fees. All life-span technical support on line can be offered freely.


65KW Diesel Gen-sets Technical Data

Genset brand and model				King Power/KPG81P
Out-put power (KW/KVA)				65/81
Alternator brand				Robot/Marathon/Leroy-somer
Fuel System				High pressure fuel pump
Fuel consumption at 75% load (L/h)				10.7
Engine	Cylinder arrangement			in-line
	Bore*stroke(MM)			105*127
	Cubic capacity(L)			4.4
	Compression ratio			17.25:1
Rated speed(RPM)				1500 /1800
Number of cylinders				4
Back pressure(KPa)				<10
Sound level(DB)		Open type		≤105
		Silent type		Custom made (60-90)
Cooling system				Fan,water coolant
Electrical system				Digital speed regulating
Start system				By electricity
Engine filter system				Paper filter
Fuel tank capacity(L)				Custom made
Packing				Custom made
Rated current(A)				108
Rated voltage/frequency/power factor				400V/50Hz/0.8
Control system				self-start,self-switch
Gross weight(KG)			Open type	950
			Silent type	1350
Overall dimension(L*W*H)(MM)			Open type	1770*700*1130
			Silent type	2300*1030*1450
One 20GP Capacity			Open type	9
			Silent type	6
One 40GP(HQ) Capacity			Open type	18
			Silent type	10

---
