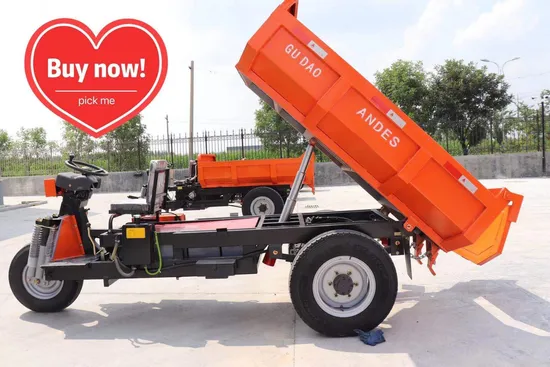

Mini Dumper/Electric Tricycle/Diesel Tricycle/3 Wheel Motorcycle with Garbage Bucket for Mining/Underground/Farm/Construction

Product Description

Mini Dumper/Electric Tricycle/Diesel Tricycle/3 Wheel Motorcycle with Garbage Bucket for Mining/Underground/Farm/Construction
Our tricycles o 4 wheel dumpers has been approvded by clients from Peru, Bolivia,Ecudoar, Malaysia Mongolia and etc over 40 countries!
We are factory of origianl mining truck factory,such as tricycle,four wheel truck, dump truck for small o midium scale mining!Diesel or electrical three o 4 wheel mining cargo dumper is our main product, mainly used in mining, brickyard, sanitation, palmryand pasture. It has been improved many times with the advantage of large power,long work hours, heavy load and suitable for any road.
We have the types of cargo tricycles dumpr truck and 4-wheel dumper trucks from 1ton to 30 tons for you to choose. We could help you choose the suitable model for you! Main Features: 1) Diesel as power resources, load more than the double weight of itself.
2) High motive power.
3) Easy to operate and maintain without technical training.
4) Large loading capacity, widely used.
5) It can be used in many kind of road conditions as the rugged road. Brief technical parameter sheet of electrical tricycles.

Model	GDD-01	GDD-15
Power source	Lithium battery	Lithium battery
Engine Model	Electrical motor	Electrical motor
Engine power	3KW(4HP)	3KW(4HP)
Driving position	Middle	Middle
Front axle Model	Double spring absorber	Double spring absorber
Rear axle Model	GDD-01	GDD-15
Transmission model	GDD-01	GDD-15
Transmission gear	1 Forward and 1 Reverse	1 Forward and 1 Reverse
Front tyre model	450-14	450-14
Rear tyre model	650-16	650-16
Leaf spring quantity	Rear: 15 Pieces	Rear: 15 Pieces
Leaf spring model	90×70×12MM	90×70×12MM
Carriage dimension	1600×1000×400MM	1800×1000×400MM
Carriage thickness	Bottom 3MM / Side 3MM	Bottom 3MM / Side 3MM
Liting motor power	1.3 KW	1.3 KW
Unloading model	Front lifting	Front lifting
Hydraulic cylinder model	110×700MM	110×700MM
Steeing model	Gear steering	Gear steering
Breaking model	Oil brake	Oil brake
Cooling system	N/A	N/A
Cabin	N/A Customization	N/A Customization
Overall dimension	3100×1150×1200MM	3300×1150×1250MM
Cabin	N/A	N/A
Loading capacity	1 Ton	1.5 Ton

Packing and delivery:
Case of client: Our Exhibition:
Inquiry service:
In order to provide you the most suitable product, please help us to answer the bellow several questoins:
1. Where do you need to use the dump truck:
For underground tunnel mine and if so, the width is? Or for palmery so the dumper need to be equipped with wider tyre.
2.What is the load capacity you need?
From 1 - 30 Tones.
3. What is the engine type you prefer?
For tricycles of 1-5 tones, we have diesel motor and electrico type. For 4-wheel dumpers, we only have diesel motor type.
4. Any other special requirements, please tell us in advance.
Warmly welcome to visit our factory and we could do a video call to introduce us first.

---
