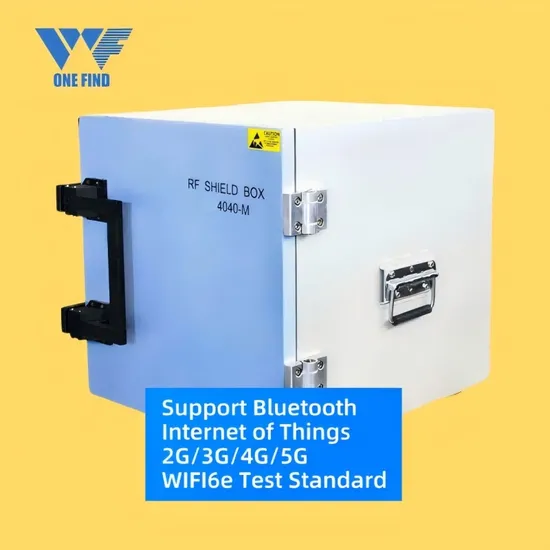

Manual RF Shield Box 0.8-8GHz Wireless Test GPS Signal Test Electronic PCB WiFi RF Manual Shield Box 4040-M

Product Description

High precision manual RF Shielding box audio EMI wifi 5g GSM mobile phone testing shield box
This product is a customized version. Please provide the interface requirements as shown in the following picture


WF4040-M is an economical manual shielding box, suitable for building a module and terminal testing solution platform in the fields of smart phones, WI-FI, Bluetooth, smart grid equipment, automotive electronics, drones, and smart homes and so on.
It is made of more than a dozen rigorous processes such as the CNC laser cutting of sheet metal, sheet metal forming, electroplating, electrostatic spray painting, assembly and debugging, testing, etc., with several advantages like high shielding effectiveness, firm structure, and stable performance.


1. The working size meets most of the test requirements of smart mobile terminals on the market.
2. New wave absorbing materials are used to reduce the refracted and reflected wave signal in the box, thereby reducing
the probability of false detection caused by the environment.
3.Various filters are available according to requirements.
4.Various interface types can be combined according to needs.

Working frequency(GHz)	0.8~8GHZ
Shielding effect	≥80 dB 2.4GHz ≥75dB 7.5GHz
Interface Type	SMA(6/10,optional)+USB2.0*2+RJ45*1+DB9*1+DC*1(Could be customized and optional)
Numbers of filters	5 pcs,6-SMA
Control method	manual
working temperature(°C)	Normal working temperature
Working size(mm)	370(W)*388(D)*370(H)
Dimensions(mm)	450(W)*490(D)*426(H)
Weight(kg)	About 30
Appearance of color	Body: beige Door: light blue (Could be customized)

FAQ

1. Beijing W&F technology Co.,LTD is founded in 2006.We locate in Beijing- the capital of China. More than 15 years professional experience in fiber optic euqipments field makes us pay more attention to the quality.
2. Our brand ONEFIND are selling all over the world.
3. Life long technical support, quick feedback to any problem.
4. We can also provide OEM service.
5. "Satisfaction of the clients is service standard" --is our marketing service strate.
