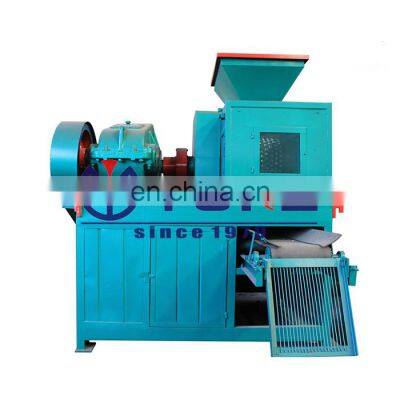

China leading manufacture Mill scale/carbon black /cast iron powder Briquette making Machine from Shanghai Yuke Industrial

Product Description

Product Description

China leading manufacture Mill scale/carbon black /cast iron powder Briquette making Machine from Shanghai Yuke Industrial
Product Description
Briquetting machine is used for making coal fines, coke fines, charcoal powder, carbon black, iron ore fines, cast iron fines, mill scale, manganese ore fines, phosphor gypsum and other material fines into briquettes. These briquettes can be designed of round ball shape, oval shape, oblateness , elongated shape , square shape etc. This machine is widely used in coal industry and metallurgy industry. We can design and manufacture the briquetting machine with hydraulic system based on customer’s demand.
Raw material :
Coal fines, coke fines, charcoal powder, carbon black, iron ore fines, cast iron fines, mill scale, manganese ore fines, phosphor gypsum and other material fines
Line Process Flow Chart
End production :
Working Principle
YUKE briquetting machine consists of three parts,namely feeding part,drive part and briquette molding part (main body)
Feeding Part
The feeding part is mainly used to achieve ration feeding so as to ensure that the materials can be fed into the rollers uniformly.Specifically,the screw feeder,driven by electromagnetic speed adjustable motor,presses materials into the main feeding port compulsively by means of the belt pulley and worm reducer.Owing to constant torque,the motor can keep constant feeding pressure,ensuring stable briquette quality.
Drive Part
The main drive system of the briquetting machine is composed of motor,triangle belt,reducer,exposed gear and rollers.The power generated by the electromagnetic speed-adjustable motor transmits to the driving shaft through belt pulley,reducer and coupler,and the driving shaft will turn synchronously with the driven shaft by the exposed gear.
Briquette Molding Part
The core of the briquette molding part is the rollers.Through rollers,the raw materials can be compressed into briquettes with various shapes.In addition, the rollers feature overload protection,hence keeping sound quality.
Technial Parameters
Product Advantages
High Briquette Ratio
Easy to opearate
Environment protection
Energy Saving
Safty Producing
innovative and unique structure
reliable performance
low energy consumption
high output and high briquetting ratio
Company profile
Shanghai Yuke Industrial Co., Ltd. is a manufacturer of briquette machine, briquetting machine and rotary dryer with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in steel, construction, aluminum and chemicals, energy and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.... View detail
