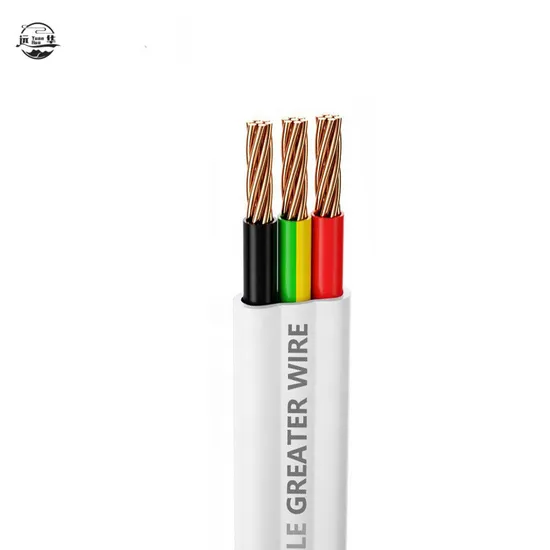

New Arrival Best Prices SAA Cable 1.5mm 2.5mm Twin and Earth Wire TPS Cable Australian Electrical Flat TPS Cable

Product Description

Company Profile
As a domestic first-line cable manufacturer, Yuanhua has experienced 15 spring and autumn. Today the company has 5 main production lines for the production of power cables, control cables, PVC insulated cables, construction wires, PVC insulated sheathed cables, rubber cables, overhead cables and such 8 series bare conductors. All of these have passed national certification, such as China mandatory certification.
The company has the most advanced production equipment and high-quality production management team. The wire and cable and electrical products produced by the company are widely used in real estate, transportation, energy, power transmission and other fields around the world, and are well received by customers.
The company has a full range of medium and low voltage cable and wire products from 1V to 35kV and various electrical products, with more than 500 product varieties and more than 5000 specifications, including high conductive cables, cross-linked polyethylene insulated cables and wires, PVC insulated cables and wires, rubber sheathed cables, special cables, overhead stranded wires and electrical materials.
These products implement IEC, DIN, BS, GB, ASTM, JIS and CSA standards. The company has passed the ISO9001 international quality system certification, ISO14001 environmental management system certification and ISO18001 Occupational health and safety management system certification, and holds the import and export qualification of the People's Republic of China and the qualification of railway material supplier. Recommended supplier for government procurement. At present, the company's products have been exported to Singapore, Malaysia, Bangladesh, Pakistan, Nigeria, Sudan, Somalia, the United Kingdom, Australia, the United Nations and other more than 30 countries and regions
Product Description

Cross section [mm2]	Type of conductor	Number and diameter of wires No/mm	Nom. insulation thick. [mm]	Nom. outer sheath thick. [mm]	Earth cond. sect. [mm2]	Nom. over, diam.	Approx, weight [kg/100m]
1	Solid copper	1/1.13	0.6	0.9	1	8.9 x 4.2	7.74
1	Solid copper	1/1.13	0.6	0.9	1	8.9 x 4.2	7.74
1	Solid copper	1/1.13	0.6	0.9	1	8.9 x 4.2	7.74
1.5	Stranded copper	7/0.52	0.6	0.9	1.5	9.9 x 4.5	8.86
1.5	Stranded copper	7/0.52	0.6	0.9	1.5	9.9 x 4.5	13.29
1.5	Stranded copper	7/0.52	0.6	0.9	1.5	9.9 x 4.5	8.86
1.5	Stranded copper	7/0.52	0.6	0.9	1.5	9.9 x 4.5	8.86
1.5	Stranded copper	7/0.52	0.6	0.9	1.5	9.9 x 4.5	8.86
2.5	Solid copper	1/1.77	0.7	1.0	2.5	11.8x5.4	13.68
2.5	Stranded copper	7/0.67	0.7	1.0	2.5	12.2x5.4	14.03
2.5	Stranded copper	7/0.67	0.7	1.0	2.5	12.2x5.4	14.03
2.5	Stranded copper	7/0.67	0.7	1.0	2.5	12.2x5.4	14.03
2.5	Stranded copper	7/0.67	0.7	1.0	2.5	12.2x5.4	14.03
2.5	Stranded copper	7/0.67	0.7	1.0	2.5	12.2x5.4	14.03
2.5	Stranded copper	7/0.67	0.7	1.0	2.5	12.2x5.4	14.03
2.5	Stranded copper	7/0.67	0.7	1.0	2.5	12.2x5.4	14.03
2.5	Stranded copper	7/0.67	0.7	1.0	2.5	12.2x5.4	14.03
4	Stranded copper	7/0.85	0.8	1.1	2.5	13.9x6.3	18.65
4	Stranded copper	7/0.85	0.8	1.1	2.5	13.9x6.3	18.65
4	Stranded copper	7/0.85	0.8	1.1	2.5	13.9x6.3	18.65
4	Stranded copper	7/0.85	0.8	1.1	2.5	13.9x6.3	18.65
4	Stranded copper	7/0.85	0.8	1.1	2.5	13.9x6.3	18.65
4	Stranded copper	7/0.85	0.8	1.1	2.5	13.9x6.3	18.65
6	Stranded copper	7/1.03	0.8	1.1	2.5	15.0x6.9	23.04
6	Stranded copper	7/1.03	0.8	1.1	2.5	15.0x6.9	23.04
6	Stranded copper	7/1.03	0.8	1.1	2.5	15.0x6.9	23.04
6	Stranded copper	7/1.03	0.8	1.1	2.5	15.0x6.9	23.04

Packaging & Shipping
FAQ
When can I get the price?
We usually quote within 6 hours after we get your inquiry. lf you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.
Are you a manufacturer or trading company?
We are a professional manufacturer with many years of experience. We can control your order from the first beginning to the last. Welcome to visit us.
How does your company do regarding Quality Control?
1)All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.
How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
What is your MOQ?
The MOQ is different, as the different cable type.
What is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil, also according to customer's requirement.
Does your company accept OEM production?
Yes, OEM/ODM is available.

---
