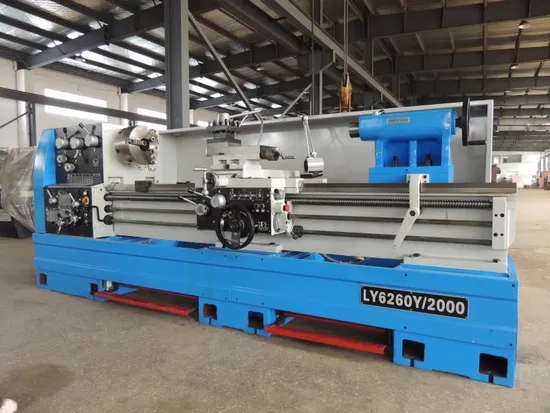

2000mm Centre Torno Lathe Machine for Sale

Product Description

2000mm Centre Torno Lathe Machine For Sale
Product Features:
1.Bed rail grinding high precision
2.CE conformity,electromagnetic brake can be amounted
3.Screw overload protection
4.Light bars overload protection
5.Fast feed(special order)
6.Precision ball bearings supporting
Standard accessories:
1.3-jaw chuck
2.center¢re sleeve
3.wrenches
4.oil gun
5.operation manual
Optional accessories steady rest Follower rest 4-jaw chuck Face plate Thread chasing dial Longitudinal automatic trip Live center Quick change toolpost Taper copy ruler 4-position longitudinal trip
Brand Image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.

MODEL	CD6250B
Max.swing in bed	500mm(19)
Max swing over slide	325mm(13")
Work-piece cutting length	1000mm &1500mm& 2000mm&3000mm
Max.swing over gap	630mm(25")
Effective length of gap	260mm(10 1/4")
Bed width	330mm(13")
Spindle hole	Ø65mm(2 3/15)
Spindle nose	IS0-D6
Spindle taper	Metric 70mm(1:20)
Spindle speeds(number)	22-1800rpm(15steps)
Metric threads range (kinds)	0.5-28mm(66 kinds)
Inch threads range (kinds)	1-56inch(66kinds)
Module threads range (kinds)	0.5-3.5mm(33kinds)
Pitch threads range (kinds)	8-56D.P(kinds)
Longitudinal feeds range (kinds)	0.027-4.038mm/rev (0.0027-0.15inch/rev)(66kinds)
Cross feeds range (kinds)	0.036-2.019mm/rev (0.0013-0.075inch/rev)(66kingds)
Rapid traverse speed	5m/min(16.4 ft/min)
Screw size diameter / pitch	35mm/6m or 35mm1/4"
Cross slide travel	300mm(12")
Compound rest travel	130mm(5")
Cross-section size of tool shank	25×25
Taper of tail-stock sleeve	MT5
Diameter of tail-stock sleeve	65mm(2 1/2")
Travel of tail-stock sleeve	120mm(4 3/4")
Main motor power	7.5kw
Cooling bump motor	0.125kw
Rapid motor	0.12kw
Packing size (L×W×H)	1000mm 2420×1150×1800mm (96×46×71inch)
	1500mm 2920×1150×1800mm (115×46×71 inch)
	2000mm 3460×1150×1800mm(137×46×71 inch)
	3000mm 4720×1150×1800mm(186×46×71 inch)
Net weight / gross weight(kg)	1000mm	1560/2210kg	1600/2250kg	1640/2290kg
	1500mm	1770/2410kg	1830/2470kg	1870/2530kg
	2000mm	2010/2780kg	2070/2820kg	2130/2860kg
	3000mm	2400*3200kg	2460/3260kg	2580/3400kg

Agents Wanted:
We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
Delivery:
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
Payment:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)

---
