Tmm-80A Metal Sheet Steel Plate Edge Milling Chamfering Beveling Machine

Product Description

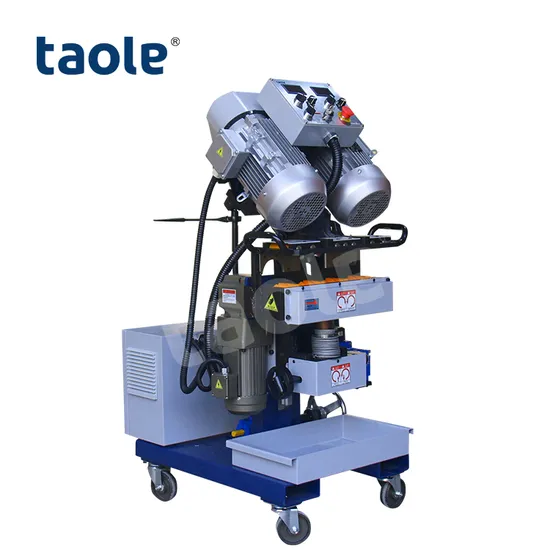

TMM-80A Metal Sheet Steel Plate Edge Milling/Chamfering/Beveling Machine
Plate edge milling machine mainly to do bevel cutting or clad removal / clad stripping on steel plates material like mild steel, stainless steel, aluminum steel,alloy titanium,hardox,duplex etc. TMM-80A Beveling Machine for plate thickness from 6 to 80 mm, bevel angel from 0 to 60 degree adjustable. TMM-80A beveling machine widly used for carbon steel plate beveling and stainless steel plate beveling.
Specifications for TMM-80A Metal Sheet Steel Plate Edge Milling/Chamfering/Beveling Machine

Models	TMM-80A	TMM-80R
Power Suppy	AC 380V 50HZ	AC 380V 50HZ
Total Power	4920W	4920W
Spindle Speed	500~1050r/min	500-1050mm/min
Feed Speed	0~1500mm/min	0~1500mm/min
Clamp Thickness	6~80mm	6~80mm
Clamp Width	>80mm	>80mm
Clamp Length	>300mm	>300mm
Bevel Angel	0~60 degree	0~±60 degree
Singel Bevel width	0-20mm	0-20mm
Bevel Width	0-70mm	0-70mm
Cutter Diameter	Dia 80mm	Dia 80mm
Inserts QTY	6 pcs	6 pcs
Worktable Height	700-760mm	700-760mm
Suggest Table Height	730mm	730mm
Worktable Size	800*800mm	1200*800mm
Clamping Way	Auto Clamping	Auto Clamping
Wheel Size	4 Inch STD	4 Inch Heavy duty
Machine Height Adjust	Hydraulic	Handwheel
Machine N.Weight	245 kgs	310 kgs
Machine G Weight	280 kgs	380 kgs
Wooden Case Size	800*690*1140mm	1100*630*1340mm

Futures for TMM-80A Metal Sheet Steel Plate Edge Milling/Chamfering/Beveling Machine
1) Automatic walking type beveling machine will walk along with plate edge for bevel cutting
2) Beveling machines with universal wheels for easy moving and storage (Heavy duty wheels for heavy duty plates)
3) Cold cutting to aovid any oxide layer by using milling head and inserts for higher performance on surface Ra 3.2-6.3 . It can do welding directly after bevel cutting. Milling inserts are market standard.
4) Wide working range for plate clamping thickness and bevel angels adjustable.
5) Unique design with reducer setting behand more safe.
6) Available for multi bevel joint type and easy operation.
7) High efficiency beveling speed reach 0.4~1.2 meters per min.
8) Automatic Clamping system and hand wheel setting for slight adjustment.
9) Machine head turnable for both top bevel and bottom bevel
Application for TMM-80A Metal Sheet Steel Plate Edge Milling/Chamfering/Beveling Machine
1. TMM-80R specially for heavy duty plates 6-80mm thick
2. Applicatd industry like steel construction, shipbuilding,pressure vessel,welding manufacturing
3. Machine turnable for Top bevel and bottom bevel
RFQ
Q1: Are you factory?
A1: Yes. We are the direct manufacture for plate beveling machine with brand of "TAOLE" and export with company name of "SHANGHAI TAOLE MACHINE CO.,LTD"
Q2: How long do you need for shipment?
A2; Standard models of beveling machine are stock avaiblable which could be test and pack ready in 3-5 days. Customized solutions normally need 30-45 days fresh made. CNC edge milling machine request 3-4 months.
Inquiry Guide for Metal Sheet Steel Plate Edge Milling/Chamfering/Beveling Machine
Before exact price offer. Can you pls advise below points to choose suitable models for metal sheet beveling? Are you user or reseller for this beveling machine? What is your plate material? ( Like Carbon steel, stainless steel or alloy steel etc) What is your plate sizes? (Maximum and Minimum will be OK) Do you request high precisions on the bevel surface? What kind of bevel joint do you need to process? Mostly like V/Y, K/X, U/J,L type, 0 degree clad removal. How about bevel sizes ? (Better if could share the drrawing and sizes)
Pls feel free to contact us if any interested models or questions. Thank you.

---
