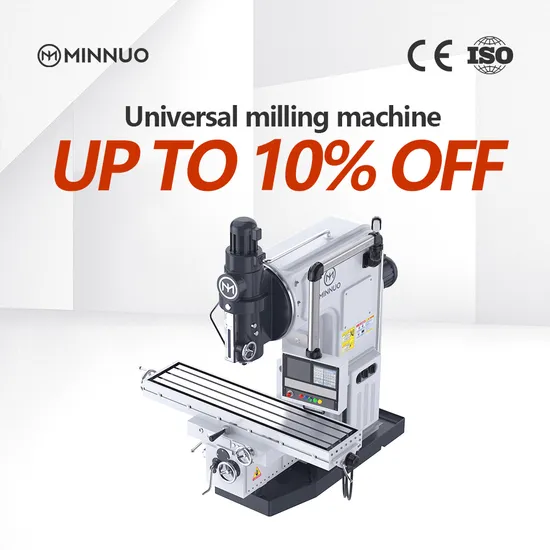

Small Size Vertical Milling High Quality Good After-Sales Service High Rigidity Universal Milling Machine

Product Description

Universal milling machine plays an important role in the field of metal cutting because of its versatility, strong rigidity and power, flexible table rotation and humanized design.
Detail Description
Multiple feeding methods: The worktable provides manual feeding, motorized feeding and motorized fast feeding in X/Y/Z directions to meet different processing requirements; fast feeding can enable the workpiece to quickly reach the processing position and improve processing efficiency.

Flexible processing range: The vertical milling head can rotate up to 360°, which expands the processing range of the machine tool. The main transmission part and the worktable feeding part both adopt gear speed change structure, with a wide speed regulation range and convenient and fast speed change.

Table size	1700x400mm
No. of T-slots	3
Width of T-slots	18mm
Max.load	800kg
Longitudinal travel(manual/auto)	900/880mm
Cross travel(manual/auto)	315/330mm
Vertical travel(manual/auto)	350/330mm
Rapid feed speed	X:2300 Y:2300 Z:770mm/min
Spindle speed range	30-1500r/min
Spindle speed step	18 steps
Distance between spindle axis and table surface	30-380mm
Power of spindle motor	11kw
Overall dimension(LxWxH)	2556x2159x1770
Net weight	3850kg

Company Profile
We combine the latest technology, superb craftsmanship and our engineering team to provide our customers with high quality custom-made parts in a wide range of metals including stainless steel and aluminium for applications in the automotive, aerospace, mechanical engineering, mould making, medical equipment, electronics and energy industries, and we are able to carry out a wide range of high-precision machining operations, such as turning, milling, drilling, and grinding, in order to satisfy the complex machining needs of different industries. We have worked with artists, designers, architects, engineers and decorators from Hong Kong, Southeast Asia, Northern Europe and the United States. Each machine features robust construction and advanced CNC control systems. Whether it's complex 3D machining or precision surface finishing, our machines will meet your exacting demands for quality and efficiency.
Our Advantages
Exhibition
OUR SERVICES
Packaging & Shipping
FAQ
1.Can you recommend equipment based on part drawings?
Minnuo has a highly responsive pre-sales team. If you provide the drawings, we canrecommend suitable equipment for a single machine within 10 minutes. For productionlines requiring multiple machines, we'll deliver a complete solution within 5 business days.
2.Do you offer customization?
Minnuo is equipped with comprehensive production facilities. We can provide customizationfor machine systems, spindle speeds, motor power, and even the sheet metal casing.
3. How is the quality ensured?
Our company uses top-tier international machining centers to ensure precision incomponent manufacturing. Additionally, we provide a quality inspection report for everymachine before it leaves the factory.
4.What is the delivery time for machines?
We keep stock of standard models for fast delivery. Customized models can be deliveredwithin 30-45 working days.
5.After-sales service
Our equipment comes with a one-year warranty, during which we offer free repair servicesIn case of equipment issues, customers can contact our after-sales team anytime. Weprovide 24-hour technical support through remote video, phone, or on-site service toresolve problems quickly.

---
