500kg 1000kg Combined Chicken Feed Crusher and Mixer

Product Description

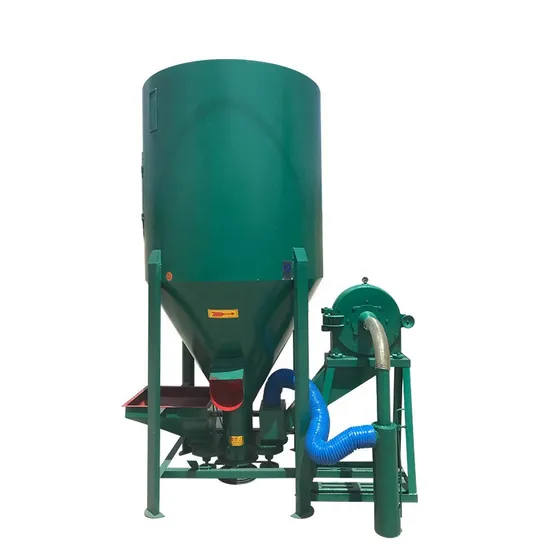

500kg 1000kg Combined chicken feed crusher and mixer
Introduction
9FH-series feedstuff machine complete set equipment have vertical type, horizontal type and single phase 300,500 which can be applied to process feedstuff in the farm.this machine is with developed design, rational construction, steady function, easy maintance, which combined mixing, winnowing, throwing together.the madeup feedstuff is with uniform component, high effiency, little occupy,little labor,small dust, good sealed.
Working principle
This feedstuff machine is combined by grinding and mixer.
1. Crushing part: feeding automatically or manually. When the material is sucked or conveyed to the crushing space, the material will be quickly crushed into powder or pellet with the continuously beat by the rolling pieces and gathering, bumping and beating of the crushing room, then it will enter into the A leaf box by the role of centrifuge air.
2. Mixing part: When the pushing devices rotate, the material and B leaf chamber will forced feeding, when it was stepped up by rotating to the top of the box, it will form a mixing process of the materials were moved to the uniformity of dispersed atomized inside mixing of the materials up and down movements and the right rotation broadcast. The effect is ideal and very satisfactory.
Main data of the machine:

Model	9FM500	9FM1000
Mixing silo volume	500kg/batch	1000kg/batch
Main power	7.5kw+3kw	11kw+3kw
MACHINE SIZE	2100*1040*2500mm	2250*1360*2500mm
