Belt Oblique Cutting Machine Full Automatic

Product Description

Webbing cutter

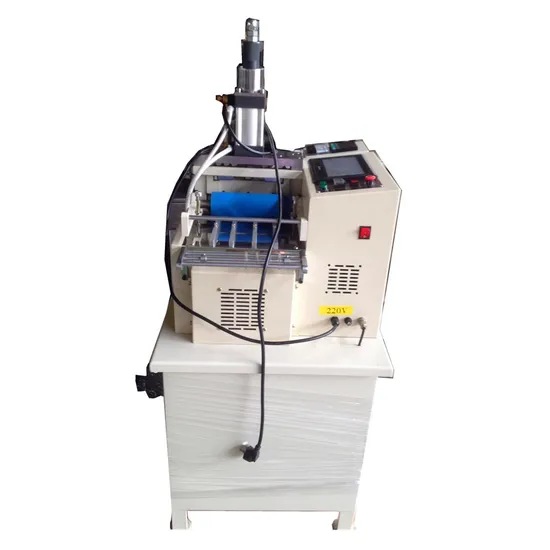

Nylon webbing hot cutting machine(DP-160A)
1, microcomputer controller
2, length can be setting
3, Knife can be added with heater for hot cut
4, cut egde can be heated and solidified without burrs
5, Ergonomically designed
6, Operation is easy
Application:
Nylon webbing hot cutting machine
Sizing cutting for Velcro, cotton yarn belt, elastic band, plastic belt,
Zipper, sleeve, paper, flat cable, small wire, metal film
Model: DP-160A
Voltage: 110V 220V
Power: 1/4HP
G. W. (KW): 90kgs
N. W. (KW): 125kgs
Cutting Length: 0.1-9999.9mm
Cutting Width: 1-160mm
Measurement: 600x700x1000mm

Model	DP-160A
Voltage	220V
Power	1/2HP
N. W.	80kg
GW.	130kg
Cutting Length	0.1-9999.9mm
Cutting Width	1-160mm
Measurement	550x550x1000mm

Configuration List :
touch screen ----------- 1 set
PLC programmable logic controller ----------- 1set
Servo drives ----------- 1 set
servo motor ----------- 1 set
cylinder ----------- 1 set
unwinder ---------- 1 set
hot cutting knife -------- 1 set
heating copper -------- 1 set
Product Details: Computer Webbing Cutting Machine (Hot and Cold Knife)
Applications:shoelaces, nylon tapes, strip tapes, ribbon tape, bag band small webbing, Woven Tapes, Strip Tapes, bag Band, etc. But no pure cotton materials.
Details: High speed: It can cut 80~100 cut per minute. (50mm long)
Accuracy: Cut-length is accurate Cutting to a stepping motor
Cutting type: Melting & cutting by hot knife, woven label is cut neatly without fraying but not for heavy materials and installed with anti-static electricity device.
Automatic operation: It works automatically only by setting length and quantity
Automatic stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on.
Used for : strip tapes, ribbon tape, bag band small webbing, Woven Tapes, Strip Tapes, bag Band, etc. But no pure cotton materials.
Cutting Method:Cold & Hot Knife (all-in-one)


SPECIFICATIONS:

Model	Cutting Length MM	Max Cutting Width MM	Cutting Speed RPM	Weight KGS	Voltage	Power KW	Max Blade TEMP °C	Packing Size MM
DP-160A	1-99999	160mm	80-100	95/75	110/220V	1.4	300	655X590X540

OPTIONAL FUNCTION :
Mark tracing system :

---
