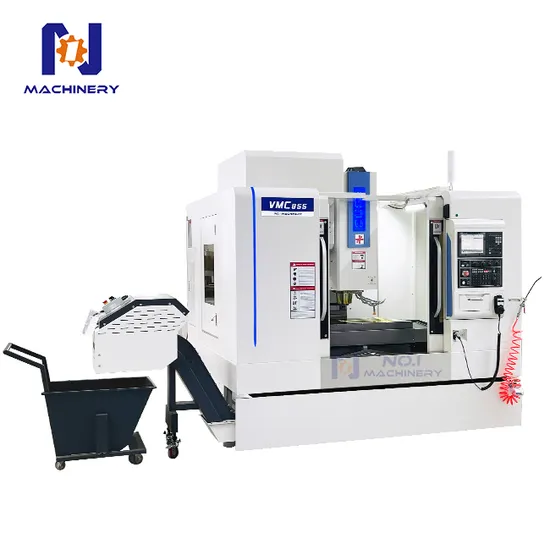

Vmc855 Vertical Machine Center CNC Milling Machine High Speed Milling Machining Center for Metal Processing

Product Description

Product Description

The machining center series products are mainly used for the production of precision molds, automotive
parts, aerospace parts, batch processing of high-precision parts for regular production, etc.And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Specification

specification	unit	VMC855
Workbench specification	mm	1000*550
Workbench min.load	kg	500
X/Y/Z axis coordinate schedule	mm	850*550*550
Distance between spindle center and column guide surface	mm	590
Distance between spindle end face and worktable surface	mm	120-670
X/Y/Z largest feed speed	mm/min	8000
X/Y/Z axis ball screw specification		4016/4016/4016
X/Y/Z axis ball rail specification		35/45/45
X/Y/Z largest fast moving speed	m/min	48/48/48
X/Y/Z motor connection mode		Direct
X/Y/Z three-axis coupling specifications		X/Y/Z:BK3-150
The spindle max.speed	r/min	8000
Table T-slot	number - size X spacing	5-18x90
Recommended X/Y/Z axis motor parameters	KW	≥3/3/3
Recommended X/Y/Z axis motor parameters	NM	≥12/12/20 (brake)
Optical machine net weight approx.	t	3.3
Bed block height	mm	50
Rail cover bracket X/Y	mm	X-420;Y-230
The spindle taper hole	type	BT40/φ150
Spindle motor	kw	7.5
The workbench T slot	mm	5-18*90
Positioning accuracy	mm	±0.0075
Repeat positioning accuracy	mm	±0.005
Tool library form		Disc
Tool magazine capacity		Disc:24
Max.tool weight	kg	8
Machine size(L*W*H)	mm	2400*2350*2650
Machine weight	kg	6000

Details Display

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.


FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(65.00%),Western Europe(10.00%),Mid East(10.00%),Africa(3.00%),South America(2.00%),Eastern Europe(2.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southeast Asia(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Numerical Control Machine, Metal Cutting Machine Tool, Metal Forming Machine Tool, Machining Center, CNC Lathe
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
