Turnover Box Plastic Injection Molding Machine

Product Description

New Injection Molding Machine Full Automatic PET Preform Injection Molding Machine
Product Parameters

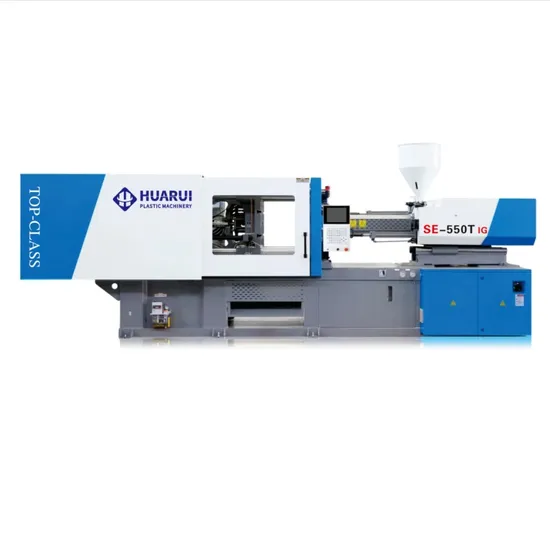

Se-550T/IG Plastic Injection Molding Machine Information
Item		Unit		A			B
Screw diameter		mm		100			105
Theoretical shot volume		cm³		3416			3767
Shot weight (PS)		g		4612			5085
Shot weight (PS)		oz		2494			2750
Length/Diameter ratio		L/D		18.8			17.9
Injection pressure		Bar		1176			1067
Injection rate		cm³/sec		1238			1365
Max.screw speed		rpm		200
Clamping force		KN		5500
Max.daylight		mm		1270*1220
Open stroke		mm		850
Space Between Tie-bars		mm		870*820
Min mould dimension		mm		320
Mould thickness range		mm		870
Ejector force		KN		120
Ejector stroke		mm		220
No.of ejector pins		unit		13
Max.motor power		KW		55+55
System pressure		MPa		175
Heater input power		KW		48
Oil filling capacity		L		700
Machine size		M		9.1*2.2*3
Net weight		KG		23000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
