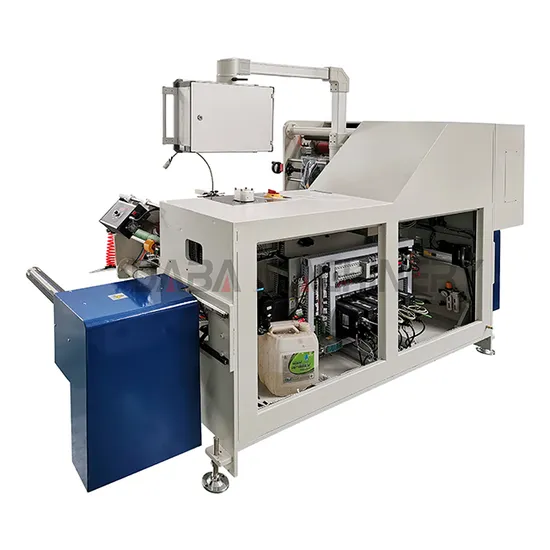

High Speed Center Seaming Machine for Shrink Sleeve Label

US$24,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
DBHZ-260D
Packaging
Box
Automatic Grade
Automatic
Packaging Material
Film
Application
Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Usage
Inner Packing
Type
Sealing Machine
Packaging Material Mechanical Properties
Full Automatic Filling and Sealing Machine
Material Type
Lump
Model
Dbhz-260d
Materials
OPS,PVC,Pet
Film Thickness
20-80um
Width of Unwinding
580mm
Max.Unwinding Diameter
500mm
Rewinding Width
25mm-240mm
Max.Rewinding Diameter
900mm
Transport Package
Wooden Box
Specification
3000x1500x1750mm
Trademark
DABA
Origin
China

Product Description

Product Description
DBHZ-260D High Speed Automatic Plastic Bottle PVC PET shrink sleeve seaming machin
Unwinding system:
1. Unwinding shaft is 3 inch air shaft.
2. Edge position correction system: Photo sensor get the signal and send it to controller. Controller give the signal to execution equipment and keep straight film edge.
3. Unwinding tension controlling system: It use servo automatically and accurately control unwinding tension .
4. Air extrude device:it makes small holes on the film, when the label shrink in the tunnel, the air will extrude via the small holes.
5. Double vertical perforation device
Forming system:
1.Mold less type :It solves the problem of the film scratches during the machine working.
2.Width adjusting : The machine adjusts the width by scale wheels,it can adjust accurately and easily when changing the width of label. 3.Forming tension control: use two servo motor to control forming tension softly and accurately. 4.Pump Gluing system is controlled by PLC. It will keep the same step with the machine running speed and make the glue well distributed. Gluing quantity controlling system can control the glue quantity, machine stop glue getting back, no pollution on film, operation easily.
Rewinding system:
1. Rewinding shaft adopt 3inch air shaft.
2. Rewinding tension controlling system: Servo motor automatically and accurately to control the tension.
3. Stroboscope:It keeps the same step with the machine, it's easy to detect the gluing condition when high speed.
4. Oscillation rewinding system : Use servo motor control the shrink sleeves roll move left to right . The parameter of it can be set by touchscreen. Static eliminating eliminator.
Machine Parameter:
Model DBHZ-260D
Materials OPS,PVC,PET
Film thickness 20-80um
Width of unwinding 580mm
Max.Unwinding diameter 500mm
Rewinding width 25mm-240mm
Max.Rewinding diameter 900mm
Max speed of Machine 450m/min
Power 3 Phase 380V 50HZ
Supply Power 7KW
