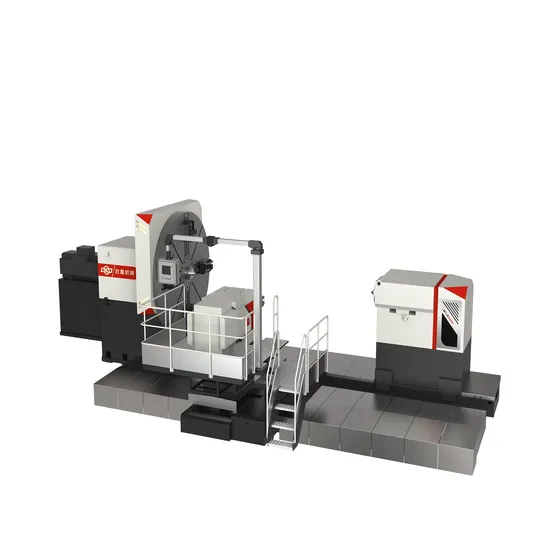

Wl/Wlr CNC Heavy Duty Horizontal Lathe (center)

Product Description

Product Description
APPLICATION
WL series is independently developed based on technologies introduced from former Western Germany SCHISSDL series and Italy SAFOP LEONARD series.
WL series adopts modular design, with advantages of heavy load, high precision, strong structure, wide application and convenient operation. Besides basic performance of conventional heavy duty horizontal lathe the machine can carry out CNC automatic machining for cone and curve surfaces, steps groove, and thread etc. Milling, grinding, boring and drilling can be carried out if equipped with different attachments. The machine can be applied in industries of energy, transportation, metallurgy, aerospace, aviation and heavy duty machinery, such as machining rotor of steamer, cover band, generator, rotor of water turbine, mechanical shaft, rudder spindle, hoister and barrel of ship.
WLR is developed based on technologies of WL series,with remarkable improvement of accuracy speed efficiency and automation. Various functional attachments could be adopted such as tool post type tool carriage, turret tool carriage, grinding wheel head, boring toolhead, etc. At single set-up all machining processes could be completed.
The main performance characteristics:
Headstock spindle adopts high accuracy rolling bearing in radial and axial. Two or three step mechanic speed change, DC motor drive. Master and slave servo motors could be adopted for milling feeding and indexing. Milling gearbox with double servo motor could be adopted for milling feeding and indexing; Tailstock adopts self-adapt mechanism of workpiece thermal elongation, load cell and teeth thrust device:·Lengthwise and crosswise guideway of tool carriage adopts closed type hydrostatic guideway with constant flow or plastic paste soft belt guideway. Lengthwise transmission adopts double rack and pinion mechanism for clearance elimination; crosswise transmission adopts double nut clearance elimination mechanism and ballscrew. Toolholder with KENNA heavy cutting interface is adopted at front of tool post. Standard toolbar or quick change tool bit could be mounted on the toolholder; Optional attachments: Milling tool carriage, end-face tool carriage for boring and turning, grinding head deep-hole boring system with diameter, deep-hole drilling system with small or large diameter, etc; For WLR series, various functional attachments could be adopted such as carriage with double tool posts, turret carriage, grinding wheel head, boring carriage, etc. Automatic attachment change could be realized. Optional CNC system: SIEMENS, FANUC, REXROTH etc. Product Parameters

Model Item		WL1600/ WLR1600	WL2000/ WLR2000	WL2500/ WLR2500	WL3000/ WLR3000	WL3500/ WLR3500	WL4000/ WLR4000
Max. swing dia.	mm	2000	2500	3200	3600	4200	5000
Max. machining dia. over carriage	mm	1600	2000	2500	3000	3500	4000
Guideway QTY		4	2+2	2+2	2+2	2+2	2+2
Max. loading capacity between center	t	32~80	50~125	50~125	80~125	80~125	80~125
Max. cutting forth	kN	70	140	140	140	140	140
Max. spindle speed	r/min	300	200	200	160	160	160
Main motor power	kW	60-110	81-166	81-166	99-225	99-225	99-225
