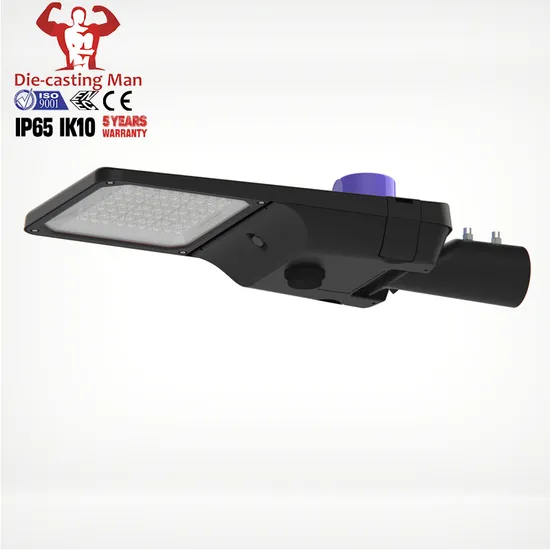

NEMA Zhaga SMD LED Street Lights

Product Description

Product Description YASL-29 street lights provides a 5 year warranty along with CE and ENEC,
CB, EMC, TM21, Rohs Eligible certifications.
Features
• Class l or Class ll
• SMD 3030/ 5050/ Ra>70
• IP66 waterproof/ IK09 • Embossed logo /laser engraving logo • Both horizontal and vertical installing ways ,spigot tilted from -15°to +15°
• Full wattage from 30 to 240W, with high luminous efficiency and various lighting distribution
• Operating temperature -40~+55ºC ,Storage -40~+60ºC
• Input Voltage: AC90-305V , 50/60Hz PF: >=0.90
• Tool-free maintenance / replacement with disconnector /knife switch(Power interruption when the housing is opened)
• Time control,Dali ,Dali Zhaga, 1-10V, Photocell, Microwave sensor can be requested on dimming type
IP66 CE ROHS

Product Code

YASL-29-40

YASL-29-60

YASL-29-100

YASL-29-160

YASL-29-240

LAMP power

30~60W

50~90W

80~140W

130~200W

200~300W

Number of lens(PCS)

4(MAX 6)

6(MAX 8)

9(MAX 12)

16(MAX 20)

24(MAX 30)

Installation Height

3-6m

4-8m

6-10m

8-14m

12-14m

Product Size(m m)

576X209X89

593X263X89

646X263X89

709X315X89

812X315X89

Packing Size(m m)

585X250X140

620X305X140

665X305X140

730X360X140

840X360X140

Net Weight

3.8kgs

4.1kgs

4.6kgs

7.4kg

9.5kg

Gross Weight

4.2kgs

4.5kgs

5.0kgs

7.9kg

10.5kg

Installation Pipe Diameter

φ45/60mm

φ60/76mm

Materials

Housing:ADC12;Cover:Toughened Glass;Screws:304stainless screws

Color

Double grey, Sandy black , Matt silver

Led Specifications

3030,5050 option

Efficiency

130~140 lm/w,140~150 lm/w,150~160 lm/w,160~170 lm/w,170~180 lm/w option

Color Temperature

2700K,3000K,3500K,4000K,5000K,5700K,6500K option(Reference:Energy Star)

color rendering index

Ra≥70;Ra≥80;Ra≥90 option

Optics

TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV option

Input Voltage

AC90~305V

Security level

ClassI/ClassII/Class1/Class2 option

Frequency Range

43~63Hz

Power Factor

PF≥0.95

Working conditions Range

-30 to 45ºC,20% to 90%RH

Dimming mode

Time control/0-10V/ Opticalcontrol/Microwaves/DALI option

SPD

10KV/20KV option

Warranty

5 Years

Protection level

IP66;IK08/09

Company Profile Die-Casting man was established in 1996 which is one of the lighting manufacturers with design & development, production & testing.
We continue to offer a superior range of production and service including street light, high bay and die casting OEM products.
We can offer a full service or simple SKD supply only.
We understand that lighting technology has to be practical, affordable and reliable. So we always design and develop products
with our customers needs in mind. We have a team of lighting designers to design, develop and manufacture our own luminaries.
Also we fully understand high quality is another important element for long term business development. We keep it in mind that
products need to meet all EU requirements when we start design process. Our products are tested in credible, recognized laboratories
and throughout product development process they go through rigorous performance testing too.
We are a company never stand still on products and service.

FAQ

1	what are your MOQ requirements	1-5 pieces for samples. 100MOQ for mass production. For your first order we can accept small quantity.
2	what about the LED Chips?	We can use the led chip that you required.
3	What about the LED driver?	We use any brand that you required.
4	What is your main product ?	Die-casting Man supply design, tooling, die-casting injection, machinning, painting, assembling and testing service for street light and OEM die casting products.
5	Guarantee of your product?	We offer 5 year guarantee for our customer. 50000 hours and 5 year guanrantee
6	Doea your fixture pass New EPR and Harmonics	Yes we are
7	Surge Protect	atleast 4kV for L-N and 6kV N/L-PE depends on which brand of drvier that you use.
8	Are you able to sell empty house	Yes we sell empty house
9	Do you have a body with easy plug and play module and driver installation	Yes, I suggest out type YASL-29 to you. Please see attached catalog page.
10	Can I put logo on the house?	Yes you can. We have two options. First option screen printing your logo on the house, no MOQ required. Second die casting logo on the house, MOQ 1000 pieces each item. There will be additional cost for both screen printing and die casting logo.
11	If I have some defective goods, what will you do?	If occasionally defective goods, we will send you free replacement with your next order. If defective rate >1%, We will send you free replacement components like driver, SPD, PCB with leds. We will not cover the freight and maintaining cost in your country.
12	what services can you provide?	Accepted Delivery Terms: FOB,CIF,EXW; Accepted Payment Currency:USD,EUR,GBP,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,PayPal; Language Spoken:English,Chinese,Japanese
13	how can we guarantee quality?	Always a pre-production sample before mass production; Always final Inspection before shipment;

---
