Automatic Pet Blow Molding Machine (PET850)

US$32,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PET850
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
1 Year
Motor
Servo Energy Saving Motor
Plastic Processed
Pet
Clamping Force
2000
Video Outgoing-Inspection
Provided
Specification
CE
Trademark
PowerJet
Origin
China
HS Code
8477401000
Production Capacity
5000sets/Year

Product Description

Product Description

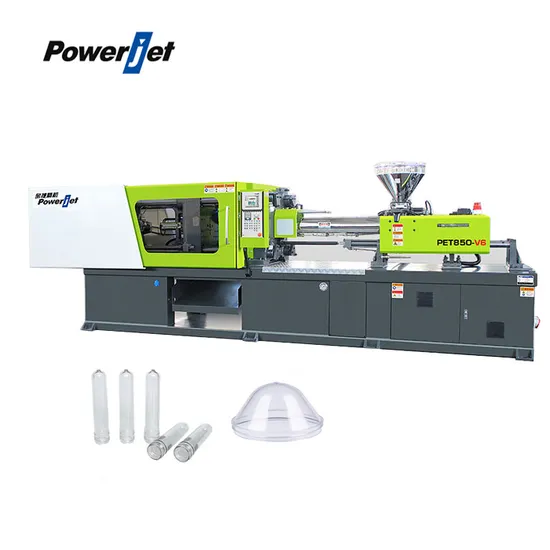

PET PREFORM INJECTION MOLDING MACHINE
Powerjet PET preform injection molding machines are specialized for different sizes of PET preforms. With PET special screw, it highly increases the plasticizing speed and shot weight.

Shoot Weight - 4975g(Max)
Clamping Force - 128~680(Ton)
Motor Type - Servo Or Variable
Applications - Specialized For Different Sizes Of PET Preform

FEATURES:
PET Special Screw
PET screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also achieves better product transparency.
Energy-Saving 30%~50%
The servo motor control system can save energy by 30%~50%, while the variable pump control system can save energy by 25% ~ 45%.
Pressure Synchronization System
Optional with pressure holding and charge at the same time, which can increase productivity by 15%~25%.
Max Shot Weight
Different models are available for the choice of customers, Max shot weight: 5000g
Machine Details
Product Parameters
DESCRIPTION UNIT PET850-V6/S6
CLAMPING UNIT Clamping force KN 2000
Opening stroke mm 490
Max.datlight mm 1040
Platen size mm 775*755
Space between bars mm 510*510
Max.mold height mm 550
Min.mold height mm 230
Ejector stroke mm 160
Ejector force KN 77
INJECTION UNIT Screw diameter mm 60
Shot volume cm3 693
Screw stroke mm 245
POWER UNIT Hydraulic system Pressure MPa 17.5
Pump motor power KW 18.5/21.8
Heater power KW 14.66
