6 Row Corn Harvester Suitable for Seed Corn Ear Corn Sweet Corn

Product Description

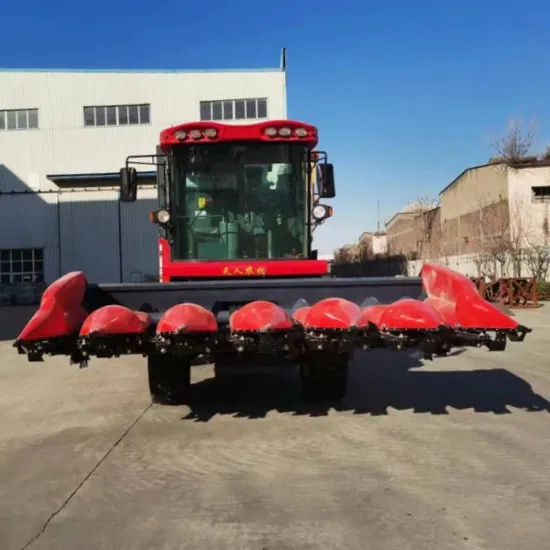

6 row corn harvester suitable for seed corn ear corn sweet corn
Product Description
The harvester can pick up corn ear, peel corn cover and crush the corn stalks during one operation. Hydrostatic drive, one-lever control, new frame design ensure its performance and reliability.

The whole system of the famous brand engine is equipped with standard hydraulic blowback fan, and directly connected rear suction hydraulic pump, which is more efficient and reliable than the belt drive. The engine shield is optimized and improved, and the engine is cleaner when working
The whole system harvester is upgraded to six groups of husker with 24 roller, and the whole system is equipped with a mechanical bar divider, which makes the husker work load smaller and more uniform;
The peeling roller is improved and optimized, and the end of the peeling roller is added to prevent blocking, and the corn stick is not blocked;
Add support under the anti-drop iron plate, do not wear the rubber roll;

Adopt new cab, standard heating and cooling air conditioning, standard positive pressure fan; High permeability working light, higher brightness; The space is larger and the vision is better, and the sound insulation sealing effect is upgraded overall.
corn header frame have been strengthened
Upper beam 60mm square pipe increased to 80mm square pipe;
Longitudinal beams were added;
The cylinder seat is strengthened;
The rectangular tube crossing the bridge is increased from 60*30mm to 60*40mm;
2024 update reinforced saddle
Saddle widened from145mm to 220mm, lengthened from365mm to 405mm;Steel plate from 10mm to 16mm;
Steering pendulum shaft from 40mm to 50mm
Chassis added front and rear axle deformation limits;
Rear-wheel steering vertical shaft from 55mm to 60mm

Product Parameters
6 Rows corn harvester machine specification

Item	Unit	Data
Model	/	4YZ-6F2
Harvesting rows	row	6 rows
Structural style	/	Self-propelled
Row space	mm	Customize according to request
Harvesting row space range	mm	regular 70cm or 75cm. Customization available
Overall size	mm	9300*4300*3780
Weight	kg	9300
Engine power	Kw	161.5
Number of cylinder	/	6
Engine model	/	YUCHAI / YCA07220-T300
Engine rated rotation speed	r/min	2200
Oil consumption	L/ha	≤35
Working efficiency	Ha/h	1-1.2
Volume of tank	m³	5
Height of unloading	m	2.9
Min. corn cob height from field	mm	200
Drive wheel	/	18.4-30
Guide wheel	/	16.0/70-20
Wheel base	mm	3286
Guide wheel track	mm	1950
Driving wheel track	mm	1920
Peeling machine	/	6 groups flat rubber roller,24 rollers
Straw chopper model	/	1JH-290
Structural style of chopper		Flail knife
Stubble height	mm	≤100
Corn seeds breakage rate	%	≤ 1%
Ear loss rate	%	≤ 2%
Air conditioner	/	Y

Company Profile
Shijiazhuang Tianren Agricultural Machinery Equipment Co., Ltd. is located in Gaocheng District, Shijiazhuang City, Hebei Province. It is a modern agricultural machinery enterprise integrating research and development, manufacturing, sales, and services. The company has a registered capital of 15 million yuan, covers an area of 170,000 square meters, and has about 400 employees, including more than 40 technical R&D personnel. Its main products include TR series 3-8 row self-propelled corn combine harvesters and TR series 3-16 row corn headers, which can match domestic and foreign large-scale combine harvesters and meet the needs of different customers.
Currently, our company owns two production areas for self-propelled corn harvesters and corn cutters, equipped with various professional production and testing equipment, including DaZu Laser, Tongkuai Laser, robot welding, bending machines, automatic feeding production lines, welding production lines, painting production lines, and assembly lines. We also have high-end devices such as magnetic particle flaw detectors, hardness testers, high-precision gearbox leakage detectors, torque test benches, air tightness testers, and box running-in test benches, as well as rich professional testing methods, to ensure the stability of the quality of each component and the reliability of the products in use.
As a professional manufacturer of corn harvesting equipment, after nearly 20 years of development, the company has more than 40 patented technologies, passed ISO quality management system certification, and obtained CE qualification certificate. Its products have excellent and reliable performance, and can also be customized according to different customer requirements, which are highly praised by customers.
The company has always adhered to the policy of providing customers with high-quality products and services, and provides online and offline services to solve problems encountered by customers during use in a timely manner. Currently, the company's products are sold in more than 20 provinces and autonomous regions throughout the country. They are also exported to France, Germany, Russia, Ukraine, Mexico, Brazil, Congo, Zambia, Kenya, Tanzania, Belgium, Romania, Egypt, Pakistan, Thailand, Malaysia, Cambodia and other countries and regions, which are loved by distributors and users.
In the future, Tianren company will continue to innovate and seize the huge opportunities in the agricultural machinery market. The company will further expand production scale, greatly improve product manufacturing capabilities and levels, and actively develop and produce new high-end agricultural machinery products to meet market demand.
Packaging & Shipping
Certifications
Corn ( Maize) Ear Harvester Machine with High Performance in Competitive After Sales Service
Tianren offers perfect facilities and comfortable environment and can provide training services to all users. The training sessions include product training, operation training, maintenance know-how, technical know- how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Tianren can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advice, your machine service life can be significantly prolonged and sustained with high capacity
Warranty period is 12 months

---
