Basic Info.
Power Type
Series Motor DC
Working Voltage of Electric Winch
Low Voltage
Applicable Environment
Mountain Road
Certification
TUV, GS, CE
Packing Size
355mm*265mm*170mm
Braking Action
Automatic in-The-Drum
Mounting Bolt Pattern
80mm
Transport Package
Carton and Pallet
Production Capacity
10000 Sets Per Month
Product Description
Product Description
Pure copper motor and power cable, waterproof control box, steel gears 12V DC 12000 lbs rated line pull 6.5HP pure copper motor Waterproof control box 3m handheld wired remote Pull-and turn clutch handle 3-stage planetary gearing with 265:1 ratio 9.1mmx26 steel wire rope Heavy duty clevis winch hook Stainless steel 4-way roller fairlead 100% full load holding automatic mechanical brake 12000LB WINCH SPECIFICATIONS
| Rated Line Pull | 12000LBS (5443kgs) single line |
| Motor | 4.8kw/6.5hp, series wound |
| Control | Remote switch, 9.8ft(3m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 265:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ2.5"(64)mm×(8.8")223.5mm |
| Cable | Φ9.1mmX26m |
| Overall Dimensions | 19.8"x6.3"x8.5"(527mm×160mm×217mm) |
| Mounting Bolt Pattern | 255mm×114mm Φ11 |
| Weight | N.W.37kg G.W.38Kg |
| Packing Size | 610×350×270mm |
PULL, SPEED, AMPERES, VOLTS
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 24.9(7.6) | 80 |
| 2000(907) | 16.1(4.9) | 180 |
| 4000(1814) | 10.8(3.3) | 240 |
| 6000(2722) | 8.5(2.6) | 280 |
| 8000(3628) | 7.2(2.2) | 330 |
| 10000(4536) | 5.9(1.8) | 380 |
| 12000(5443) | 5.2(1.6) | 400 |
LINE PILL AND ROPE CAPACITY IN LAYER
| Layer | Rated Line Pull
lbs(kgs) | Total Rope on Drum
ft(m) |
| 1 | 12000(5443) | 13(5) |
| 2 | 10200(4627) | 23(11) |
| 3 | 8400(3810) | 69(21) |
| 4 | 7300(3311) | 92(28) |

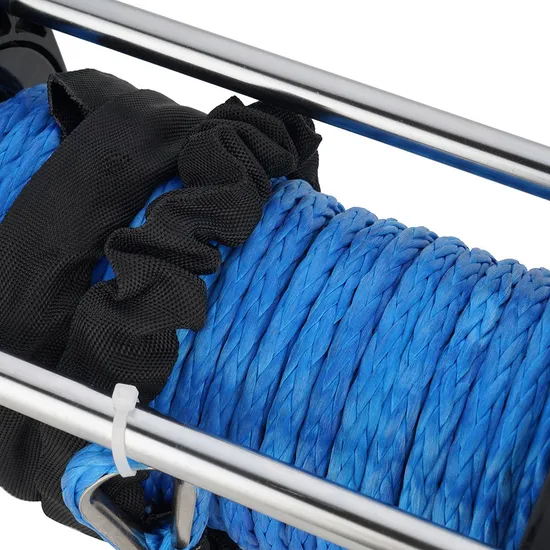

Detailed Photos
