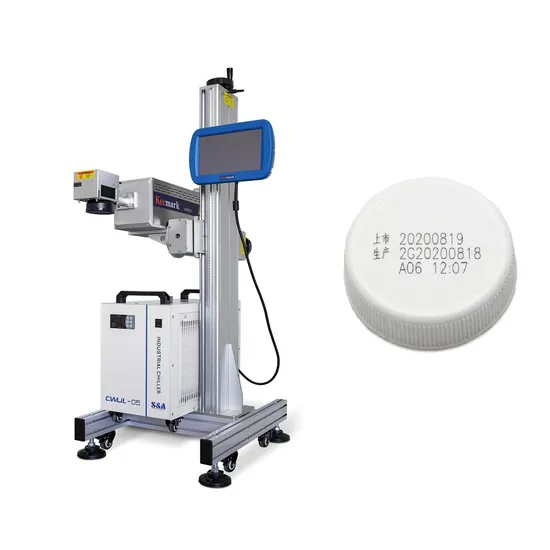

UV laser marking is dedicated to materials such as tubes, plastic films, plastic caps and PPR, PVC and PE materials... It is widely used in the marking of packaging, electrical components, medicine, chemical and construction products for marking production data, batch number, batch number, manufacturer name. |
| Product Main Component | |||
| INNO Laser | F-theta Lens | control panel | 3D Column |
| Application Industry |
| Food industry | Beverage industry | Hygiene industry | Pharma industry |
| And many more ... | |||
| Chemical industry | Cosmetic industry | Household industry |
| Product Parameters |
| Laser type | UV laser | laser beam | 0.8mm(±0.2mm) | |
| Laser wavelength | 355nm | Standard working distance | 255 - 265mm | |
| Laser power | 5W /3W /10W | Laser class security | class 4 | |
| Modulation frequency | 10 - 200 kHz | Number of raws | No limits | |
| Scanning speed | 0 - 9000 mm/s | Marking Content | Text,bar code ,QR code ,graph... | |
| Marking area | 100*100mm (Optional) | Whole unit power | ≤800W | |
| Making depth | 0.01 - 0.2mm(depend on material) | Making depth | 0.01 - 0.2mm(depend on material) | |
| Marking line width | 0.01 - 0.1mm | Cooling | Air cooling | |
| Minimum character | 0.2mm | Power Supply | AC220V±10%,50Hz/60Hz | |
| Positioning accuracy | 0.01mm | Continuous working time | 24H |
| Marking Samples |
| Optional Configuration |
| Conveyor Belt | Page dispenser machine | Smoke purifire (CO2 use only) |
| Our Advantages |
| Creativity - Innovation Independent R&D team,continuous innnovation with passion . Professional technical engineers team, concentrate on technical upgrade for better marking . | |
| Credibility - Integration Focus on industrial 4.0 , aims to improve the production efficiency and industrial automation . The markers could integrate into assembly lines and packaging machines and packaging lines. | |
| Economical and efficiency There is no consumables cost needed , with power connnected , it will keep working . Fewer maintenance required, just routine cleaning is okay . | |
| Precision and accuracy The marker configurated with world-advanced emitter and lens , which guarantees it will continuous to deliver precise and accurate marks. | |
| Widely compatible The marker suitable for versatile packaging subastrates and materials ,which commonly used on food & beverage industry, pharmaceutical , daily cosmetic and hygiene and more. |
| Company Profile |
| Packaging&Shipping |
| FAQ |
1.What a uv laser marking machine can do? UV laser marking is widely used in the marking of packaging, electrical components, medicine, chemical and construction products for marking production data, batch number, batch number, manufacturer name. 2.How to choose the most suitable laser marking machine? There are five points you need to consider before you choose a laser marker : - Consider what materials you want to mark . - Consider the laser power that you need . - Consider what accuracy and speed that you need . - Consider the support . - Else , safety ,budget,working field , 3.How laser marking machine works? Laser marking works by using a focused beam of light to mark the surface of a material. When the beam interacts with the material's surface, it alters the material's properties and appearance , and then leave the clear ,durable and permanent marks on the materials' surface . 4.How to installation and maintenance the laser marking machine? We will provide installation videos for you before shipping , you can check the videos and installation the laser marker ; if any questions during installation , we can support face to face technical service . Even you are navice , you can take that all easily . As for maintenance , the laser marking machine no neeed special maintenance operations , just routine clean is okay . 5.Can I get some tests before I decide which to buy? Yes , free test offering . Before order , you can send the packaging samples to us , the items that you want to mark the code on it , we will do free test for you with different laser , ensuring that you choose the most suitable ones and help you save money and energy . 6.What's the main difference between the laser marker and inkjet printer? Laser marker and inkjet printer are both coding method for industrial use . The biggest difference between this two method is that laser marker doesn't need consumables and maintenance , it has obvious advantages on anti-conterfeiting , the laser marks are legible and durable on the whole life cycle of the product , and it's resistant to erasure . And the inkjet printer , they deliver coding without alter the materials' properities and appearance , just leave the codes on the surface of the materials . On anti-conterfeiting and traceability solutions , it has safety risks . |
