Xzl5100gxfsg40/E5 High-Performance Jmc Fire Fighting Vehicle for Fire Departments

Product Description

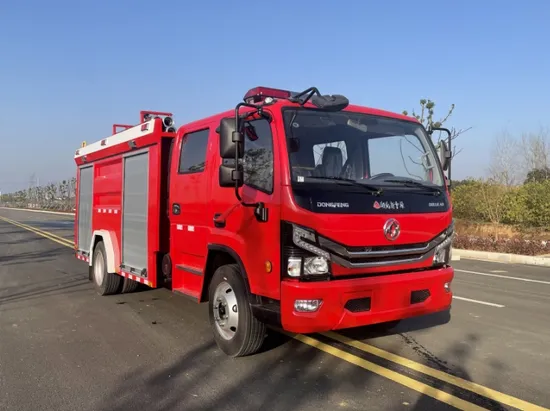

XZL5100GXFSG40/E5 water tank fire truck is modified from the original second-class chassis of Dongfeng Corporation, matched with a Yuchai four cylinder turbocharged intercooled, electronically controlled high-pressure common rail diesel engine, 110KW, 150 horsepower, and meets China 5 emission standards. The vehicle consists of two main parts: the firefighter's cabin and the body. The cabin is a double row four door cabin that can accommodate 3+3 people. The vehicle has an exposed tank structure, with an equipment box in the front, a water tank in the middle, and a pump box in the rear. The carrier tank is made of high-quality carbon steel with a capacity of 4000L. The vehicle is equipped with Shanghai Rongshen CB10/30-RS fire pump and Chengdu West PS8/30W fire monitor, with an effective range of ≥ 60 meters. This vehicle is widely used in public security, forest and grassland firefighting, factories, mines, enterprises, township communities, airports, docks and other places, suitable for extinguishing routine fires
Vehicle model: Zhongjie brand XZL5100GXFSG40/E5 water tank fire truck
Dimensions (length x width x height): 6890 x 2200 x 2980mm
Total weight: 10350kg
Rated load capacity: 4000kg
Curb weight: 5900kg
Capacity: 4000L
Maximum speed: 90km/h
Fire cannon range: water ≥ 60m
Approach angle/departure angle: 23 °/14 °

---
