JARCH 2 ~ 24 Conductors Large Bore Slip Rings , Through Hole 500mm slip ring connector

Product Details

Product Description

Product Description
JARCH 2 ~ 24 Conductors Large Bore Slip Rings , Through Hole 500mm slip ring connector
Product Description
2 ~ 24 Conductors Large Bore Slip Rings , Through Hole 500mm slip ring connector

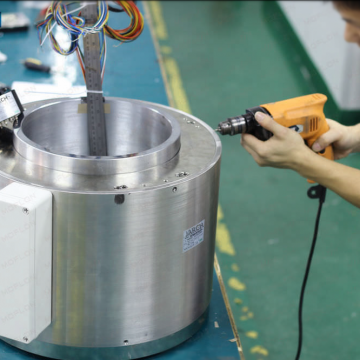

JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.

The TH500 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 500mm through-bore for routing hydraulic or pneumatic lines. The 2~90 amps /circuit are available in 1-72 ring.
JARCH 2 ~ 24 Conductors Large Bore Slip Rings , Through Hole 500mm slip ring connector
Specifications:

Rings	2~72	Current	Signal(2A) or 5A/10A/15A/20/30/50A
Voltage	mV~380 VDC/VAC	Max speed	50RPM
Through bore size	500mm	Overall diameter	730mm
Housing Material	Aluminium Alloy	Torque	0.05N.m;+0.03N.m/6rings
Working life	50million	Contact material	Precious Metal:Gold-Gold
Electrical noise	Contact Resistance		Dielectric strength	1000VDC@50Hz	Lead Wire	UL Teflon® Awg26,Awg22,Awg16
Insulation resistance	500MΩ@600VDC	Lead Lengths	300mm(12")
Operating Temp.	-40°C to 80°C	Protection	IP54 (IP68 Optiaonal)
Materials	Lead Free, ROHS	Certified	CE,FCC,UL,ROHS

Benefits
JARCH 2 ~ 24 Conductors Large Bore Slip Rings , Through Hole 500mm slip ring connector

1. Designed for through bore hydraulic or pneumatic rotating shaft installation
2. Uses fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle
3. Standard, off-the-shelf
4. Gold plated ring and Gold alloy brush
5. Support power,signals transmitting
6. Rings combination is available
JARCH 12mm-120mm-500mmThrough Bore hole hollow Slip Rings
Installation Instructions:Shaft/Flange Mounted
Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery
Applications:
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
JARCH 2 ~ 24 Conductors Large Bore Slip Rings , Through Hole 500mm slip ring connectorRelated Products
Medical Equipment 65mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Pancake Slip Ring
Company Information
JARCH Company is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
Blue Hybrid Slip Rings 2 ~ 36 Circuits / Sealed Air Rotary Joint With 5A Power
Medical Equipment 65mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Pancake Slip Ring
JARCH 2 ~ 24 Conductors Big Through Bore Slip Ring , Through Hole 500mm slip ring connector
FAQ
1.What technical data should be provided for our customized slip ring model.
A:
If you want to costomize the special slip ring model, you need provide details as below:
a. Operatring speed(RPM)
b. The type of installation
c. Outline size
d. Channels(the No. of single wire besides cable)
e. Rated voltage & current for power rings and signal rings
f. The signal type and related parameters(very important)
g. Operating temperature h.IP(sealing requirements)
2.How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
Contact Us
If you have any questions, pls contact us without any hesitation.

---
