Suitable for Roasting/Drying Different Oil-Materials, Rapeseeds, Peanut, Soybean, Cottonseed, Coconut Steam Cooker

Product Description

Suitable for Roasting/Drying Different Oil-Materials, Rapeseeds, Peanut, Soybean, Cottonseed, Coconut Steam Cooker Product Description

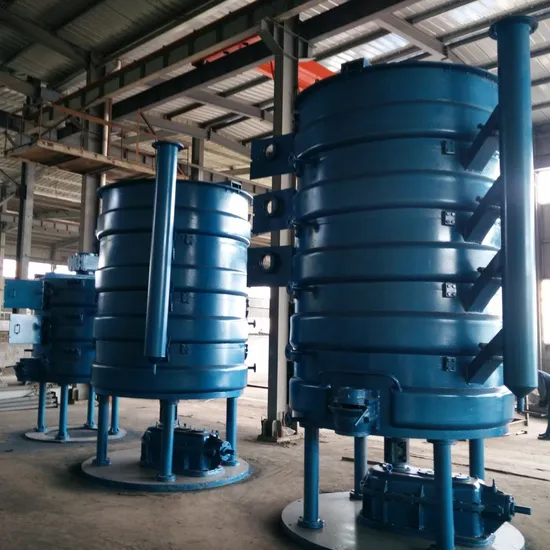

YZCL series teaming and stir-frying cauldron is the processing equipment, with which the uncooked flaking billet is made to cooked billet by cooking after making humid. In order to meet the requirement the next pressing or leaching, the equipment could be used as softening cauldron. Oil seed leaching could improve the quality of flaking, and then improve the yield of oil, as well the quality of squeezed oil. It is the necessary equipment in vegetable oil seed pre-processing for the vegetable oil plant the diameter series: 1200,1500,1800,2100,2500,2800,3000mm.

Parameter Name	Product specifications
	YZCL120X3	YZCL120X5	YZCL150X5	YZCL180X5	YZCL210x5	YZCL250X5(6)	YZCL300x5(6)
Processing capacity t/d (cottonseed)	7-10	15-20	25-30	40-50	60-70	80-100	150/200
Design pressure MPa	0.66	0.66	0.66	0.66	0.66	0.66	0.66
Design temperature ºC	168.2	168.2	169.6	169.6	164	164	164
Working pressure MPa	0.54	0.54	0.54	0.54	0.54	0.54	0.54
Processing capacity t/d (cottonseed)	Y160M-6 7.5KW	Y160M-6 11KW	Y200L1-6 18.5KW	Y200L2-6 22KW	Y225M-6 30KW	Y250M-6 37KW Y280S-6 45KW	Y280S-6 45KW Y280M-6 55KW
External dimensions (LxMxH) Mm	1840x1440 x2530	1840x1440 x3450	2175x2075 x3850	2774x2300 x4250	2900X 2440 x4250	3300x2800x 4678(5328)	3800x3300x 4678(5328)
Machine weight	2130	3150	5850	7200	9400	12200(13800)	19800(21800)

Detailed Photos
Product Parameters
Main use:
The YZCL series vertical steaming and frying pan is the main equipment for oil pretreatment in vegetable oil factories. It can be used as a softening equipment for oil materials. By heating and adding water, the oil materials can be softened to ensure the quality of the next rolling process, avoiding sticking to the rollers or rolling the oil materials into powder during the rolling process. The rolled embryo also needs to be steamed and fried through this equipment to adjust the temperature and moisture of the embryo and meet the requirements of the oil extraction process. By steaming and frying in a frying pan, the yield of oil can be increased and the quality of crude oil can be improved.
2, Performance characteristics:
1. The YZCL series vertical steaming and frying pan has a reasonable structure, reliable performance, complete specifications, and a large daily processing capacity. Small footprint and low power consumption. Easy to operate, maintain, and repair, with low operating costs.
2. The cooked embryos obtained by steaming and frying with this equipment are adaptable to the plasticity and resistance of the oil press, improving the oil yield of the oilseeds.
3. The temperature of the steaming and frying pan is easy to control, the water content is easy to adjust, and the height of the material layer is automatically controlled, bringing many conveniences to the operation.
4. Smooth transmission, low noise, and safe operation.
Installation Instructions
This equipment is installed on a solidified concrete foundation, and the foundation is designed and constructed according to the foundation drawing, equipment weight, and local soil conditions. The motor and gearbox are connected by elastic pin couplings. After installation, it should be ensured that the two axes of the motor and gearbox are coaxial, with a permissible radial displacement of ≤ 0.25mm and an axial displacement of ≤ 0.5-3mm. Check whether the scraper bolts are tightened, whether all bolts of the automatic material door are tightened, and whether there is any looseness. Sufficient space should be left around the equipment to ensure that during maintenance activities, the installation of steam pipelines in the activity area should avoid interference with operation and maintenance, which may cause inconvenience. The inlet pipe can be directly installed on the 0.6MPa steam main pipeline. Condensed water pipes should be equipped with suitable traps.
