Premium Wood Debarker for Plywood Processing

Product Description

Product Description
Wood log debarker is used to find the circle of irregular shaped logs.
It adjusts the log to a standard cylindrical shape through the positioning and cutting of the roller,
which is convenient for subsequent processing, to make various knids of plywood.

The wood surface fiber organization
and wood chips are peeled off,
the wood is processed into cylinder
by rotating rollers and uneven rollers.
During the processing, a lot of wood chips and dust will be generated.
Machine Structure:
The wood log debarker consists of peeling structure, rounding structure,
saw blade structure, and clamping structure, among others.

Technical process:
1. Fix the wood on the worktable of the wood log debarker.
2. Adjust the position and angle of the saw blade.
3. Start the machine.

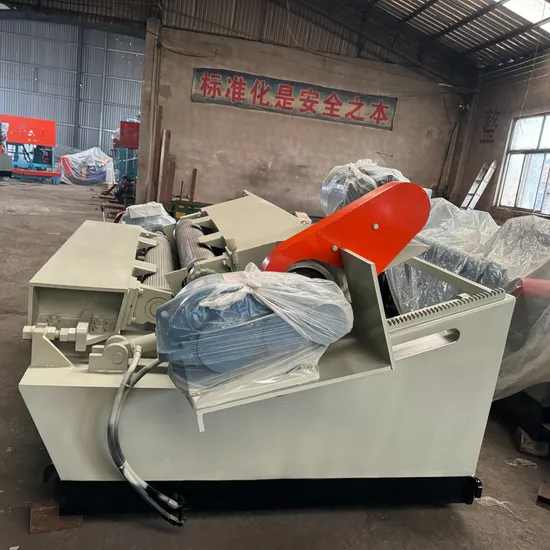

Machine Photos for Reference

Detailed Photos

Product Parameters

1	Model	BZY-L1500-D600
2	wood log size	length 1500 mm , diameter 600 mm
3	knife blade size	1500*140*12.7 mm
4	double roller	diameter 200 mm ,
		350# reducer 11 KW
5	single roller	diameter 180 mm,
		250# hardened reducer 7.5 KW
6	peeling speed	45 m/min
7	hydraulic system	motor power 5.5 KW
8	total motor power	24 KW
9	machine size	3500*2000*1600 mm
10	machine weight	4300 KG

The parameters above is just for reference, most of parameters can be customized.
Machine Features
· Quick rounding
· Continuous processing
· Precise size
· Smooth surface
· Can process wood of different sizes
· High degree of automation
· Safe operation
· Made of high-quality materials
· Easy maintenance
· Save wood
· Low energy consumption
· Customization
· Environment friendly
