US$10,000.00-40,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
Shredder Machine
Material Processed
Plastic Bottle
Computerized
Computerized
Certification
QS, GMP, ISO9001:2008, CE
Production Line Composition
Feeding Port, Knife Head, Screen, Motor, Reducer
Transport Package
Film and Wood Package
Product Description

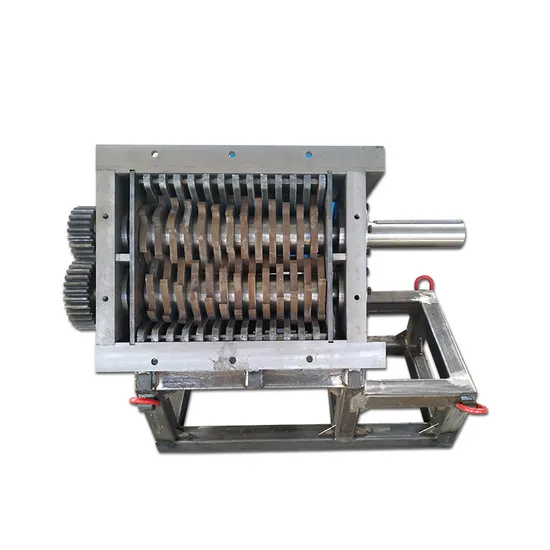

Product Introduction:
A machine used as a coarse crusher, mainly used to process unprocessed raw materials or trimmings to make them finer in size. Compared with other crushers, the shredder has a low rotational speed of the knife shaft, low noise and low energy consumption.
The structure of the shredder mainly includes feeding port, knife head, screen, motor, reducer and other parts.
Product feature:
The main features include high performance, a wide range of applications, good durability, a high degree of safety and energy efficiency.
Application:
Widely used in the recycling industry, especially in the treatment of metal, rubbish, wood, rubber, plastic and other materials, can significantly reduce the volume of the material, increase its bulk density, easy to transport and recycling Utilisation.
Device parameter:
| Model | 160 | 260 | 360 | 400 | 500 | 630 |
| Rotary blade OD (mm) | 160 | 260 | 360 | 400 | 500 | 630 |
| Blade RPM | 480 | 580 | 536 | 404 | 550 | 401 |
| Rotating blade quantity (pc) | 3 | 3 | 3 | 5 | 12 | 3 |
| Screen hole mesh (mm) | 8 | 10 | 10 | 12 | 10 | 12 |
| Crushed granule size (mm) | 3~8 | 3~10 | 3~10 | 3~10 | 3~10 | 3~10 |
| Crusher capacity (kg/h) | 60~120 | 250~300 | 300~400 | 400~1000 | 400~1000 | 700~1500 |
| Motor power (kw) | 3 | 7.5 | 11 | 15 | 22 | 30 |
>>
