500kg 1000kg 2000kg Drying Mixing Machine for Plastic LDPE HDPE Pipe Production

US$2,000.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VM-2000
Application
Granules
Application Area
Chemical
Certification
CE, ISO
Condition
New
Stirring Type
Spiral
Working
Lifting Mixer
Material
Stainless Steel
Capacity
500kg-10000kg
Mixing Type
Lifting Mixer
Type
Vertical
Assistant Function
Drying
Feed
by Labor
Inlet Position
at The Bottom of The Mixer
Heating
by Electrical
Manufacturing Period
20 Days
Guarantee
One Year
Layout Type
Verticle
Mixing Drum Shape
Drum
Operating type
Cycle Operating
Warranty
One Year
Mixer Type
Lifting Dryer Mixer
Transport Package
Plastic Film and Wooden Box
Specification
2000kg
Trademark
CONBOPLAS
Origin
Zhangjiagang
HS Code
8477800000
Production Capacity
500kg-10000kg

Product Description

Introduction:

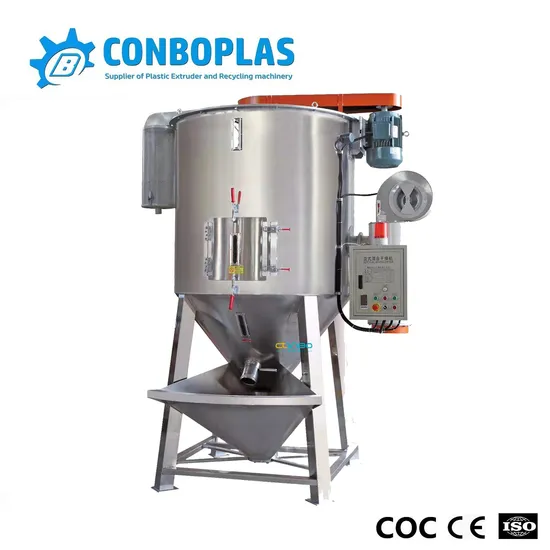

Plastic granule vertical agitating machine ,made of stainless steel, the machine adopts the state-of-the-art technique--spiral mixing, allows mixing storing in large quantity (up to 10 tones) . It is suitable for granular and powder forms of many materials, such as plastic and rubber raw material, animal food, wood sourced, building material, among other fields. The spiral at center elevates materials to top of the tank and then throw them outwards all around in tank to achieve blending purpose. The plastic granule vertical agitating machine overcomes the traditional shortcomings and disadvantages, allows most even and sufficient blending. It is the great aids for plastic extrusion, animal food mixing, building materials blending, and many others.
Features:
1. Material tank and propeller blades are made of stainless steel, eliminating rust corrosion and easy to wash;
2. The frame is of framework design, solid and durable;
3. Propeller is wholly processed after welding, with high concentricity and steady operation;
4. The standing operation allows little space;
5. Mixing in a sealed manner, uniform mixing and no leakage definitely;
6. Small horse-power, large mixing capacity and fast speed to realize a uniform mixing in 3~5 minutes;
7. Oil filler and material discharging device are designed at frame bottom, with durable bearings.
Technical specifications:
Model/Item Driving power (kw) Heating power (kw) Output (kg) Dimension (mm)
VM-500 4 15 500 1200*2650
VM-1000 4 20 1000 1500*2800
VM-2000 5.5 20 2000 1800*3250
VM-3000 7.5 30 3000 2000*3750
VM-5000 7.5 40 5000 2400*4200
VM-6000 11 50 6000 2500*4500
VM-8000 11 60 8000 2750*5100
VM-10000 11 70 10000 3000*5350
Remarks: all the information above is only for your reference; please gather the exact data by contacting us.
