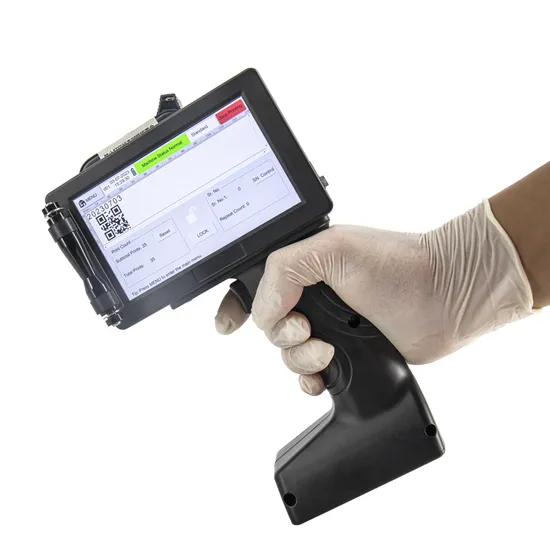

| Machine Type | T130E handheld code machine |
| Nozzle type | TIJ 2.5 thermal foaming nozzle |
| Nozzle number | 1 |
| Printing accuracy | Maximum: 600DPI * 600DPIVertical optional: 100DPI, 150DPI, 300DPI, 600DPI Horizontal optional: 30-600DPI precision adjustment |
| Printing height | 25.4mm |
| Printing distance | 1-5mm |
| Number of printing lines | Any number of lines can be edited within the effective printing height |
| Printing speed | 406m/min(90DPI), 304m/min(120DPI), 240m/min(150DPI), 120m/min(300DPI), 60m/min(600DPI) |
| Print content | Text, time, date, pattern, shift, serial number, dynamic barcode / QR code, dynamic serial data, dynamic database(Additional content can be added as required) |
| Barcode types: CODE11, C25INTER, CODE39, EXCODE39, EAN13, EAN13x, CODE128, CODE16K, CODE49, CODE93, Flattermarken, UPCA, UPCE, EAN14, VIN, NVE18 2D code types:QRcode, DataMatrix, MicroQRcode, PDF417, PDF417TRTRUNC, MICROPDF417 | |
| Counter | More than 20 independent counters |
| Printing material | Carton, plastic, metal, sheet, pipe, stone, cable, glass, electronic components, auto parts, industrial chemical packaging, medical food gift box |
| Ink type | Food grade, water-based, oily, weak solvent, solvent |
| Ink color | Black, white, red, yellow, blue, green, invisible, UV |
| Operating system | Embedded Linux security operating system |
| display screen | 5 inch color display, industrial touch screen |
| Main hardware | American TI AM3358 industrial grade CPU, American Xilinx Spant9 industrial grade FPGA, TIJ dedicated ASIC chip |
| Communication Interface | Charging interface, USB, RS232 |
| External interface | Optical eye, encoder, flip upside down control |
| Nozzle installation | Built-in integrated nozzle |
| Support language | Support more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Norwegian, Portuguese, Japanese, Spanish, Italian, etc.) |
| Power parameters | Input 100-240V AC; output 12.6V DC, 3A (power charger) |
| Battery parameters | 12.6V / 3350mAh lithium battery pack (supports a single removable lithium battery) |
| Machine material | ABS + PC + Metal |
| Machine specifications | 220mm * 140mm * 95mm |
| Working environment | Temperature 0-45 ºC / Humidity 30-70% Rh |
| Related certification | RoHS, CE, FCC |
