5 Tons 100 Tons Cylinder LPG Skid-Mounted Gas Refueling Station

Product Description

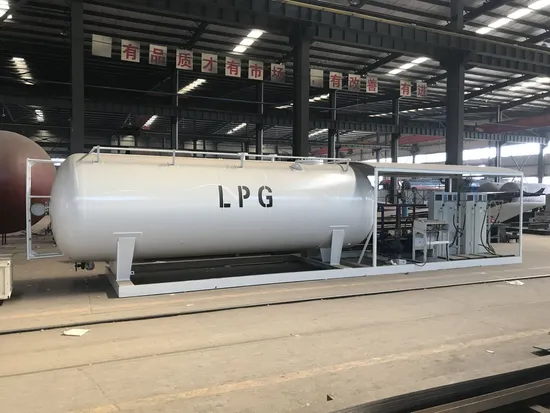

5cbm LPG Skid-Mounted gas refueling Station
Techinical Data as follows:

Specification of 2.5T/5CBM LPG Storage Tank
Volume of Tank	5 CBM
Filling Weight	2500 kg
Tank Weight	2030 kg
Thickness of Shell (mm)	10 mm
Thickness of Endplate (mm)	10 mm
Tank Diameter (mm)	1600 mm
Overall Dimensions (mm) (length x width x height)	3070x1620x2210 mm
Material of Tank and Main Pressure Parts	Q345R Steel Specially for Pressure Vessels
Design Pressure	1.77 MPa
Hydraulic Test Pressure	2.22 MPa
Filling Medium	Liquefied Petroleum Gas ( Propane)
Medium Density	420-590 kg/ cbm
Filling Ratio	0.95
Corrosion Allowance	1 mm
Service life	15 years

Main parts of LPG Tank
Item	Specification	Quantity(pc)
Discharge Pipe	DN50	1
Inflow Pipe	DN50	1
Outlet	DN50	1
Gas phase balance pipes	DN50	2
Manhole	DN450	1
Drain Hole	DN50	1
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List are showed in separated page below.

LPG Skid Part list
Item	Model Number	Quantity
LPG Tanker	/	1 unit
LPG Filling Machine with scale(Can fill 3kg to 150kg gas cylinder)	BCS-150	1 unit
Filling pump(Blackmer Brand)	LGLD2E	1 Piece
Anti-explosive motor(ABB brand)	M2JA160M8B	1 Piece
Water Spraying Cooling System	/	1 set
Alerter	QJ-D-99F	2 Piece
Ball floating level gauge	UQZ-2.5P	1 Unit
Safety valve	A42F-25 DN50	1 Piece
Check Valve	H42N-40DN50	2 Pieces
Stop valve	J41N-40 DN50	3 Pieces
	J41N-40 DN32	2 Piece
	J41N-40 DN25	3 Pieces
Pipe safety valve	A21F-25 DN15	1 Piece
Unloading pipeline	L=4M DN50/DN25	1 Set
Shockproof pipe	L=500mm DN50	2 Pieces
Elbow cap	DN65	2 Pieces
	DN50	10 Pieces
Flange	2.5MPaDN50	6 Pieces
	2.5MPaDN32	2 Piece
	2.5MPaDN25	6 Pieces
Equipment base	/	1 Unit
Pipes	/	1 Set

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our liquefied gases tank can work In low pressure at room temperature, the volume from 5 cubic meters --- 100 cubic optional.If you have other speical requirement, we can customize for you.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

---
