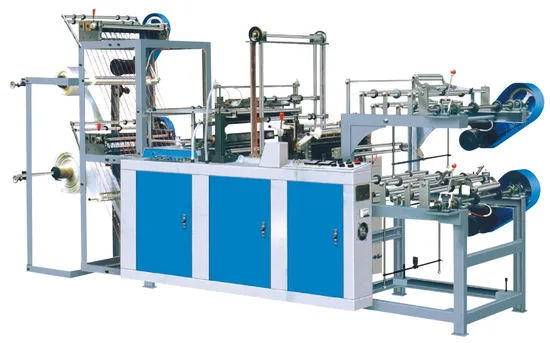

Double Line Rolling Bag Sealing and Cutting Making Machine

US$6,000.00-9,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
GBDR
Automatic Grade
Automatic
Packaging Material
Film
Application
Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Usage
Outpacking, Inner Packing
Type
Packaging Sealing Machine
Packaging Material Mechanical Properties
Full Automatic Filling and Sealing Machine
Material Type
Bulk Solid
Max Bag Width
600mm
Thickness
0.005-0.10
Sealing and Cutting Length
100-1200mm
Motor Power
1.1kw
Air Compress
700kg
Overall Dimensions
3200X1100X1600
Transport Package
Wooden Case
Specification
120pcs/min
Trademark
NuoSheng
Origin
Zhejinag China
HS Code
84778000
Production Capacity
120 PCS/Min

Product Description

The machine is used for producing vest bags and flat-opening bags with printing.
Double lines
High speed
Rolling bag making
It is used for producing vest bags and flat-opening bags with printing. The main motor adopts frequency conversion motor to save more power and regulate speed more freely. The color code tracker with good performance makes the sealing and cutting length more accurate and the error less. It adopts advanced computer to adjust length more freely and accurately.
1. The whole machine adopts microcomputer control and material pulling by stepping motor(Servomotor control system can also be selected and equipped).
2. Arbitrary fixed-length, accurate and stable step photoelectric tracking stopping automathcally when the label is lost, photoelectric control feeding.
3. Automatic counting and settable counting alarm.
4. Automatic constant temperature makes the sealing of bag opening firm and smooth.\
Bag Sealing and Cutting Making Machine
Technical Parameters
Type GBDR-600
Bag making Width(mm) 50-500
Bag making length(mm) 100-1200
Bag Thickness(mm) 0.005-0.04
Bag making speed 10-80pcs/min 20-160pcs/min
Error in length(mm) ±2
Motor Power(kw) 1.1
Weight(T) 0.7
Dimensions(L*W*H)M 3.2*1.1*1.6
PS. The data above may be changed tinily during different time
