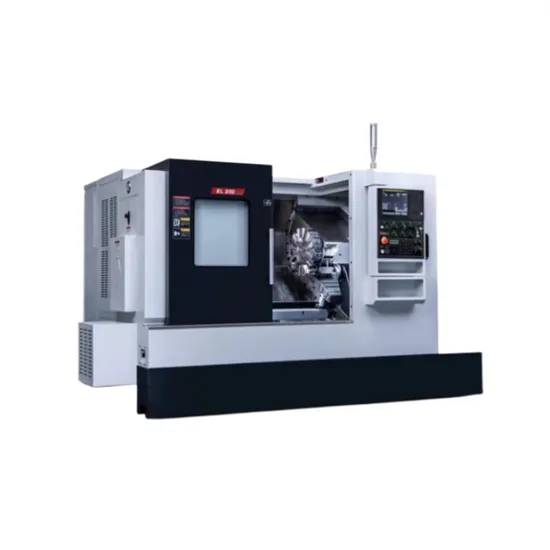

High Precision Slant Bed EL200 CNC Turning Lathe Machine

Product Description

Specification Parameter

Items (FANUC 0I-TF)	Unit	EL200(L)	EL280(L)	EL200Y(L)	EL280Y(L)
Max. Swing over bed diameter	mm	Φ 650	Φ 650	Φ 650	Φ 650
Max.swing over saddle	mm	Φ330	Φ330	Φ330	Φ330
Max. Turning diameter	mm	Φ450	Φ450	Φ350	Φ350
Max. Turning length	mm	570(720)	540(690)	500(650)	470(620)
Spindle
Spindle motor power ( continues / 30min )	kw	11/15	11/15	11/15	11/15
Spindle max. speed	rpm	4200	3500	4200	3500
Spindle nose	/	A2-6	A2-8	A2-6	A2-8
Through hole dia.	mm	Φ76	Φ91	Φ76	Φ91
Bar capacity	mm	Φ 65	Φ 80	Φ 65	Φ 80
Hydraulic chuck	Inch	8"	10"	8"	10"
Feed axis
X/Z/Y axis max. travel	mm	250 / 580(730)	250 / 580(730)	250 / 543(690)/100	250 / 543(690)/100
X/Z/Y axis motor power	kw	1.8 / 1.8	1.8 / 1.8	3.0 / 1.8 / 3.0	3.0 / 1.8 / 3.0
X/Z/Y axis rapid speed	m/min	30/30	30/30	30/30/10	30/30/10
X/Z guide type	/	Linear rail	Linear rail	Linear rail	Linear rail
C axis (option)
Min. Spindle positioning accuracy		--	--	± 0.001 °	± 0.001 °
Dynamic accuracy		--	--	± 0.002 °	± 0.002 °
Turret type
Turret capacity		12	12	12	12
Square tools	mm	25	25	25	25
Circle tools	mm	Φ40	Φ40	Φ40	Φ40
Power turret motor	kw	--	--	3.0	3.0
Power turret		--	--	BMT55-ER32	BMT55-ER32
Power tool speed	rpm	--	--	4000	4000
Tailstock
Mandrel diameter	mm	Φ70	Φ70	Φ70	Φ70
Mandrel travel	mm	150	150	150	150
Tailstock body travel	mm	460(610)	460(610)	460(610)	460(610)
Taper hole taper		MT#5	MT#5	MT#5	MT#5
Mandrel/tailstock control programmable		YES/NO	YES/NO	YES/NO	YES/NO
Specification
Positioning accuracy ( X/Z)	mm	±0.005	±0.005	±0.005	±0.005
Repeatability ( X/Z)	mm	±0.003	±0.003	±0.003	±0.003
CNC control system		FANUC	FANUC	FANUC	FANUC
Chip conveyor		Side type	Side type	Side type	Side type
Machine dimension(L x W x H)		2519x 1750 x 1695 mm	2519x 1750 x 1695 mm	3211x 1750 x 2207 mm	3211x 1750 x 2207 mm
Machine net weight	kg	3700/4200	3900/4200	4500/5000	4700/5200
