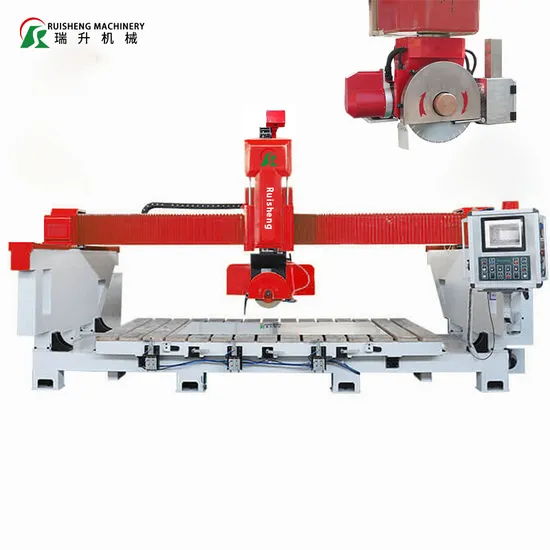

Ruisheng 5 Axis Machining Center Stone Cutting Machine for Granite Marble

Product Description

Product Description
5 Axis CNC Bridge Saw Machine uses Italian CNC control system to cutting high-quality, precise and efficient fabrication of stone, granite, marble, and engineered stone materials.
CNC 5 Axis Machine versatility, it can handle straight cutting, mitering cutting, hole drilling, sink cutting, profiling cutting, round cutting, arc cutting, and even straight and un-straight L shape cutting.
Product Parameters

Product name	RSCNC-400	RSCNC-600	RSCNC-700
Blade diameter	300-400mm	300-600	400-700
X-axis stroke	3300mm	3300mm	3300mm
Y axis stroke	2000mm	2000mm	2000mm
Z axis stroke	250mm	500mm	500mm
C axis stroke	±361°	±361°	±361°
A axis stroke	0-90°	0-90°	0-90°
Spindle speed	0-6000r/min	0-6000r/min	0-6000r/min
Main motor speed	18.5kw	22kw	22kw
Cutting thickness	0-80mm	0-170mm	0-210mm
Platform size	3200×2000mm	3200×2000mm	3200×2000mm
Flip angle	0-85°	0-85°	0-85°
Total power	28kw	32kw	33kw
Machine size	5900×3400×3300mm	5900×3400×3600mm	5900×3400×3700mm
Weight	4300kg	6000kg	6500kg

1. Camera dimensions(standard configuration)
2. The knife function (Optional)
3. Thickness function (Optional)
4. Chuck function (Optional)
5. Cutter function (Optional)
Packaging & Shipping
FAQ
Q: Are you a manufacturer or trading company?
A: We are one of the leading manufacturer in China.
Q: What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-30 days after the deposit is received, If urgent, it can be negotiated.
Q: What's the warranty time?
A: One year, but technical support will be a lifetime.
Company Profile
