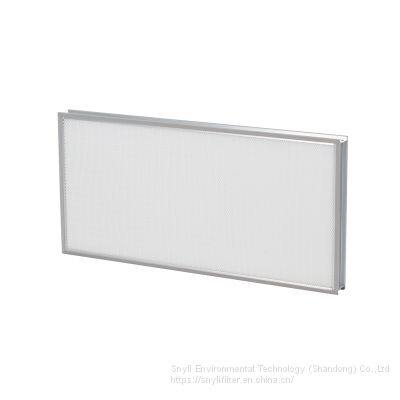

Mini pleat HPEA ULPA filter

Product Details

Product Description

Product Description
Advantages
 Lower pressure drop
 Energy saving
 Lightweight & easy to install
 High sealing performance without leaking
Product Characteristics
Frame: Anodized aluminum
Media: Glass fiber
Efficiency:
H11 (EN 1822) / MERV 16 (ASHRAE 52.2)
MPPS:≥95% / DOP: ≥99.9%@0.3 μm
H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)
MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm
H14 (EN 1822) / MERV 19 (ASHRAE 52.2)
MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm
U15 (EN 1822)/MERV 20 (ASHRAE 52.2)
MPPS: ≥99.9995% / DOP: ≥99.9999%@0.12 μm
U16 (EN 1822)/MERV 20 (ASHRAE 52.2)
MPPS: ≥99.99995% / DOP: ≥99.99999%@0.12 μm
Separator: Hot melt
Sealant: EPDM
Max. Temperature: ≦ 70°C
Max. Humidity: ≦ 100% RH
Applications
Designed for clean rooms and FFU,Air shower and other air filtration equipment in applications, such as health care, commercial, educational and industrial buildings.

---
