Pg Vacuum Mandrel Washer Cutting Equipment for Precise Applications

Product Description

AUTOMATIC RUBBER WASHER OR GASKET SLEEVE VACUUM CUTTING MACHINE
APPLICATION:
The PG Vacuum Mandrel Washer Cutting Equipment by Nanjing Pege Techno Machine Co., Ltd. is expertly crafted for the swift and precise cutting of diverse materials including rubber, silicone rubber, plastic, and PTFE gaskets, washers, and sleeves. This state-of-the-art machinery excels at efficiently handling tubular-type components, ensuring optimal performance and productivity.
FEATURES:
1. Experience outstanding efficiency as this machine revolutionizes the traditional molding process, significantly reducing labor demands and operational costs.
2. Optimize resource usage with this innovative technology, designed to conserve raw materials and minimize production waste.
3. Achieve extraordinarily high precision with cutting capabilities reaching an impressive accuracy of up to 0.003mm, ensuring meticulous results.
4. Enjoy flawlessly smooth, clean, and lustrous finishes on every cut, maintaining the integrity and aesthetics of the material post-processing.
Product Description

Model	PG-YAQ-1S	PG-YAQ-2S	PG-YAQ-4S
Shaft Qty	One Shaft	Two Shafts	4 Shafts
Drive Mode	Servo Motor	Servo Motor	Servo Motor
Cutting Efficiency	Max 60 cut/min	Max 120cut/min	Max 240cut/min
Speed	0~3000r/min	0~3000r/min	0~3000r/min
Precision	≤±0.05mm	≤±0.05mm	≤±0.05mm
Cut Diameter Range	Φ10mm~Φ150mm	Φ10mm~Φ120mm	Φ10mm~Φ110mm
Cutting Length	≤200mm	≤200mm	≤150mm
Wall Thickness	≤20mm	≤20mm	≤20mm
Blade Spec	(1)Round Blade:Φ60×Φ25.4×Φ0.35mm	(1)Round Blade:Φ60×Φ25.4×Φ0.35mm	(1)Round Blade:Φ60×Φ25.4×Φ0.35mm
Consumption of Air	50L/min	50L/min	50L/min
Pressure	0.5MPa~0.8MPa	0.5MPa~0.8MPa	0.5MPa~0.8MPa
Vacuum Level	≤-0.035MPa	≤-0.035MPa	≤-0.035MPa
Power Supply	AC220V±5% 50/60Hz	AC220V±5% 50/60Hz	AC220V±5% 50/60Hz
Gross Power	1KW	2KW	3KW
Weight	≈400Kg	≈580Kg	≈800Kg
Dimension(L*W*H)	1350mm×980mm×1400mm	1550mm×980mm×1650mm	1650mm×980mm×17650mm

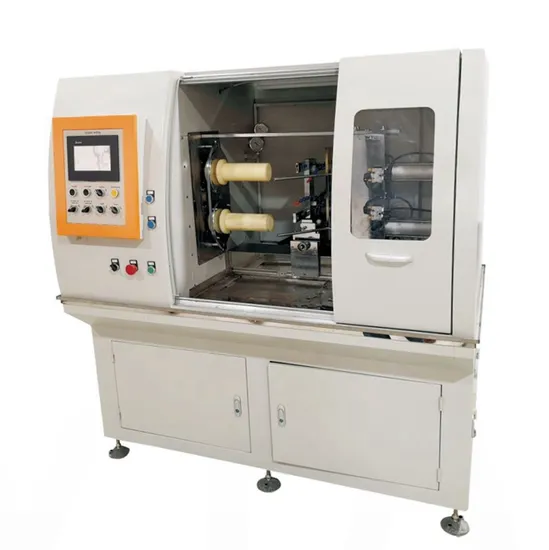

Machine Picture and Workshop Photos
Products After Cutting

---
