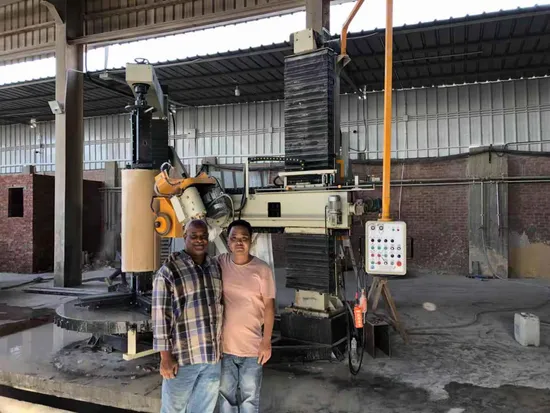

automatic column cutting&polishing machine

Product Description

Function: The machine is used for processing column base&cup,cutting and polishing arc slab& solid column. Also can trim up-down edge of arc slab. Brief introduction: 1,this machine is controlled by PLC system. AC contactor and breaker adopt Schneider brand. Inverter adopt Toshiba brand.
2,Cutter head moves left and right by screw rod transmission,is controlled by inverter
3,Cutter head goes up and down by screw rod transmission,is controlled by inverter
4,Platform of rotation is driven by variable frequency motor with belt transmission. Revolving speed can be adjusted by inverter according to the hardness of the stone.
5,This machine takes advantage of Optical Fiber Amplifier to receive the signal copying the shape of template you want to process.
Technical parameters:

Parameters	YMJ2000(II)
Blade diameter	Φ400-Φ600mm
Max Processing arc slab size	(Φ400-Φ2000)×1800mm(height)
Main Motor Power	11KW
Water Consumption	4m³/hour
Overall Dimension	5500×2200×4300mm
Total Power	19.75KW
Total Weight	6.5T

Electric Cabinet& Operation Panel Photos :
Exhibition: FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The machine can be shipped within 15 workdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical support 24 hour on line.

---
