Jh-8 Explosion-Proof 7.5kw Motor Power Prop Pulling Winch

US$4,000.00-4,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
JH-8
Speed
Slow
Carrying Capacity
Middle-Level
Tonnage
5T
Reel Number
1
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE
Standard
National Standards
Model
Jh-8
Steel Wire Rope Average Static Tension
80 Kn
Drum Diameter* Width (mm)
280* 230
Drum Rope Capacity (M)
100
Steel Wire Rope Diameter
17
Steel Wire Rope Construction
6* 19
Motor Model
Ybk2-160m-6
Motor Power (Kw)
7.5
Voltage (V)
380/660
Winch Weight (Including Motor)
650
Transport Package
Wooden Case or Carton Case
Specification
1450* 512* 515 mm
Trademark
China Coal
Origin
Jining City, Shandong Province, China
Production Capacity
1000 Sets Per Month

Product Description

Introduction of JH-8 Explosion-Proof 7.5KW Motor Power Prop Pulling WinchJH series explosion-proof prop pulling winches are mainly for underground prop pulling, transportation, placing ground anchor, and chute shifting.
JH series prop pulling winch adopted spherical worm gear pair drive, compact structure, are symmetrically and rectangle arranged with the sledge-shaped chassis, smooth and flexible for underground self-moving.zmwm10 Parameter of JH-8 Explosion-Proof 7.5KW Motor Power Prop Pulling Winch
Model
Parameter		 JH-5 JH-8 JH-14 JH-20 JH-30
Steel wire rope
average static tension (KN)		 50 80 140 200 300
Steel wire rope (m/s)
average speed 		0.17 0.12 0.115 0.118 0.13
Drum diameter* width (mm) 276* 372 280* 230 400* 317 430* 530 550*560
rope capacity (m) 80 100 130 170 220
Steel wire
rope		 diameter 15.5 17 21.5 24.5 30
construction 6* 19 6* 19 6* 19 6* 19 6* 19
nominal extension strength (M pa) 1550 1550 1550 1550 1570
Explosion proof
motor		 Model YBJ7.5-4 YBK2-160M-6 YBK2-200L1-6 YBK2-200L2-6 YBK2-280S-4
Power (KW) 7.5 7.5 18.5 22 45
Voltage (V) 380/660 380/660 380/660 380/660 380/660
Rotate speed (r/min) 1450 970 970 970 980
Overall size:
length* width* height		 1450* 512* 515 1550* 530* 570 1955* 680* 815 2560* 968* 797 3300*1077*1034
Winch weight (including motor) 620 650 1350 2600 4460

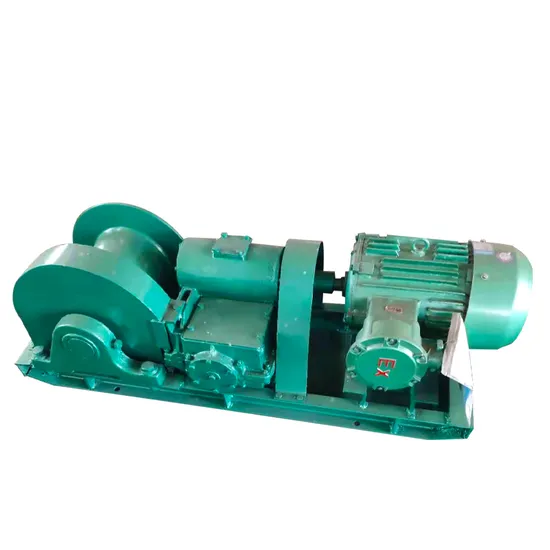

Pictures of JH-8 Explosion-Proof 7.5KW Motor Power Prop Pulling Winch
