iMeter 6 Class 0.2S Three-Phase Power Quality Analyzer with Color LCD Ethernet Optional 1 Analog Input Port

Product Description

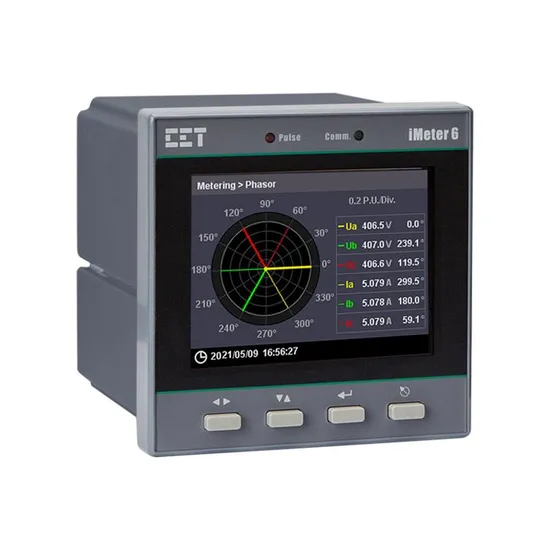

CET iMeter 6 96*96mm 3-Phase Panel Mount Class 0.2S Color LCD Ethernet Port RS-485 Port Support Advanced Power Quality MonitorThe iMeter 6 is CET's latest offer for the advanced Power Quality Monitoring of Incomers and Critical Feeders for Utilities, Data Centers, High-Tech Manufacturing Facilities and Heavy Industries. Housed in an industry-standard DIN form factor measuring 96x96x119.5mm, the iMeter 6's compact size is perfectly suited for today's space restricting environment. The iMeter 6 features quality construction with metal enclosure, advanced Power Quality and Revenue-Accurate Measurements, High-Resolution Waveform Recording Capabilities, comprehensive Data Logging with 2GB memory, extensive I/O and a user friendly, IPS Color Dot-Matrix Display @ 320x240. It also provides either an I4 Input for Neutral Current Measurement or a 0/4-20mA Analog Input for measuring external transducer signal such as Residual or Leakage Current. With a standard 100BaseT Ethernet Port and an RS-485 port supporting multiple protocols, the iMeter 6 becomes a vital component of an intelligent Power Quality Monitoring System.

Typical Application

• Class 0.2S Revenue Metering • Power Quality Monitoring of Main Incomer or Critical Feeder• Utility, Industrial and Commercial Metering• Substation, Building and Factory Automation
• Low, Medium and High Voltage Applications
• Neutral (I4) and Residual Current (Ir) Monitoring

Feature Summary

Ordering Information

Dimensions

Technical Specifications

Company Profile

CET has approximately 300 R&D Engineers and a 8000 m2 R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.
CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.

---
